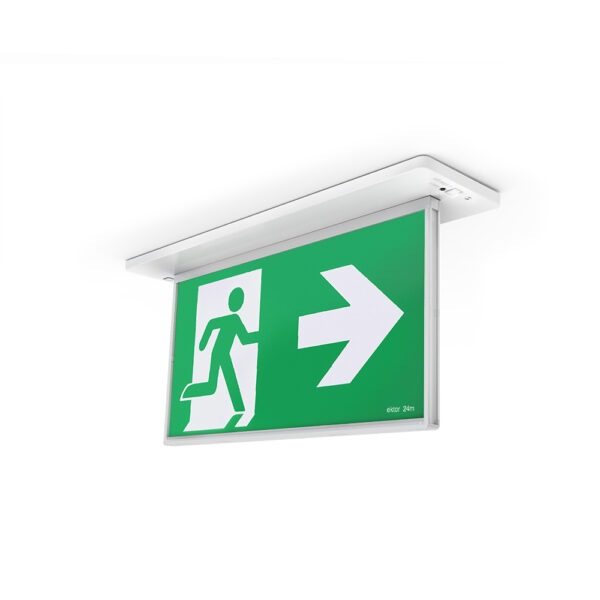

Ektor Lynk Razor Recessed Emergency Edgelite Exit | Wireless DALI DT1 | 90 Min Emergency Duration | 24m Viewing Distance | by Ektor
The Ektor Lynk Razor Recessed Emergency Edgelite Exit is designed for reliable emergency exit signage in commercial and industrial settings. Featuring a wireless DALI DT1 monitoring system and a maintained emergency mode, this exit light ensures 90 minutes of illumination with a viewing distance of up to 24 meters. Built with a durable polycarbonate body and PMMA diffuser, it’s perfect for compliance with Australian standards and offers a long product design life of 12 years.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Wireless Emergency Exit Light, Recessed Emergency Exit Sign, LED Exit Sign, Emergency Edgelite Exit
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 3.7 W
- Input Voltage: 230Vac (-6%/+10%)
- Standby Power: 1.7 W
- Driver Type: Wireless (IEC62386-104) with DT1
- Dimmable: No
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Emergency Control: IEC62386-104 Wireless DT1
- Emergency Light Source Life: 18 years
- Product Design Life: 12 years
- Dimensions (H x L x W): 150mm x 50mm x 300mm
- Weight: 1.5 kg
Key Features
- Recessed installation with polycarbonate body and PMMA diffuser
- Maintained emergency mode with wireless DALI DT1 monitoring
- Emergency duration of 90 minutes with 16 to 24 meter viewing distance
- Low standby power consumption of 1.7 W
- Integrated driver with 3.7 W maximum wattage
- Supports wireless test and monitoring over IEC62386-104
- Product design life of 12 years with 8 years commercial warranty
- IP20 rated for indoor use
- Complies with AS/NZS 2293.3 for emergency lighting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian standards and optimal emergency lighting performance.
Applications
- Commercial buildings for emergency exit signage
- Public facilities requiring compliant emergency lighting
- Industrial sites needing reliable emergency exit illumination
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during standby and emergency operation
- Long product design life minimizes waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Razor Recessed Emergency Edgelite Exit - 24M - PRO with wireless is available for immediate purchase, ideal for commercial and industrial emergency exit lighting applications.
