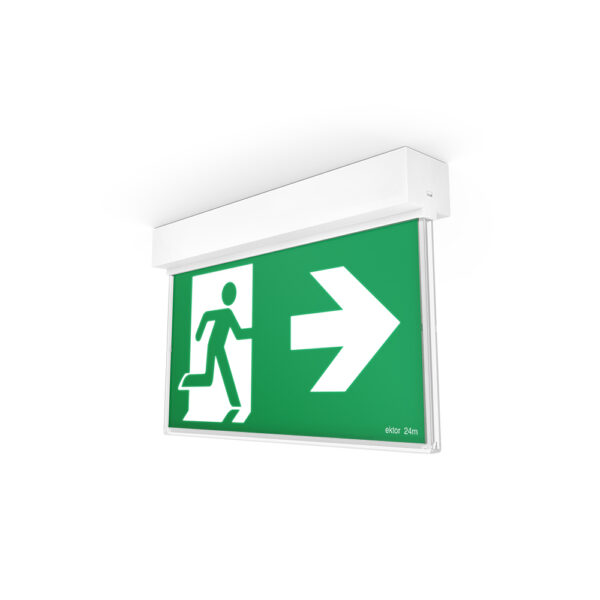

Ektor Lynk Razor Surface Mount Emergency Exit | IP20 Rated | Wireless & DALI Control | 90 Min Duration | by Ektor
The Ektor Lynk Razor Surface Mount Emergency Exit is designed for reliable emergency signage in commercial and industrial settings. With an IP20 rating, wireless and DALI control options, and a maintained emergency mode providing 90 minutes of illumination, this exit sign ensures safety and compliance. Built with a durable polycarbonate body and PMMA diffuser, it’s perfect for environments requiring efficient emergency lighting solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Wireless Emergency Exit Light, Maintained Emergency Exit Sign, DALI Emergency Exit Sign, Surface Mount Exit Sign
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2.6 W
- Standby Power: 1.9 W
- Driver Type: EV-RAZOR-SM-ADV-24M-DA (DALI DT1) or EV-RAZOR-SM-ADV-24M-LK (Wireless IEC62386-104)
- Emergency Mode: Maintained
- Emergency Classification: C0:E6.3, C90:E10
- Emergency Output Power: 650 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Emergency Light Source Life: 34 years 4 months (projected)
- Product Design Life: 8 years
- Dimensions (H x L x W): 150mm x 50mm x 300mm
- Weight: 1.2 kg
Key Features
- Surface mount installation with white polycarbonate body and PMMA diffuser
- Maintained emergency mode with 90 minutes emergency duration
- Wireless and DALI DT1 emergency control options with monitoring and testing
- Emergency output power of 650 mW with 24 meter viewing distance
- Integrated driver with re-wireable 5 pin terminal block
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless
- Product design life of 8 years including LEDs, drivers, and enclosure
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards and proper integration with emergency lighting systems.
Applications
- Commercial buildings emergency exit signage
- Industrial facilities requiring maintained emergency lighting
- Public spaces needing wireless monitored emergency exit signs
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.6 W maximum wattage and 1.9 W standby power
- Long product design life reduces waste and replacement frequency
- Energy-efficient LED technology minimizes environmental impact
Warranty Information
6 years return to base commercial use warranty.
Available Now
The Ektor Lynk Razor Surface Mount Advanced Emergency Exit sign is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
