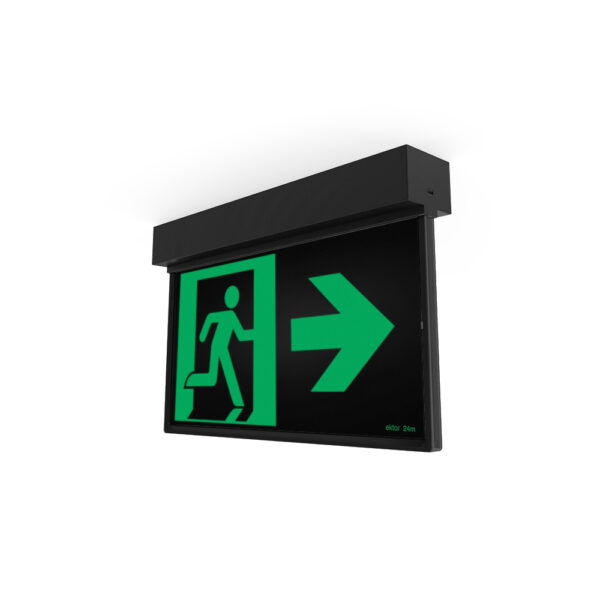

Ektor Lynk Razor Surface Mount Emergency Exit | Wireless & DALI DT1 | Maintained Mode | 90 Min Duration | by Ektor
The Ektor Lynk Razor Surface Mount Emergency Exit is designed for reliable emergency signage in commercial and industrial settings. Featuring a wireless and DALI DT1 emergency driver, this exit sign operates in maintained mode for up to 90 minutes, ensuring visibility during power outages. With a viewing distance of 24 meters and an IP20 rating, it’s perfect for indoor applications, providing peace of mind in emergencies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Wireless Emergency Exit Light, Maintained Emergency Exit Sign, Surface Mounted Exit Sign
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 2 W (Black models), 2.6 W (White models)
- Standby Power: 1.7 W to 1.9 W depending on model
- Driver Type: DALI DT1 Emergency or Wireless IEC62386-104 with DT1
- Wiring Type: Re-wireable terminal block (2 or 5 pin)
- Emergency Output Power: 350 mW or 650 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Emergency Control: DALI Monitored with full IEC62386-202 compliance
- Emergency Light Source Life: 34 years 4 months to 51 years 1 month (projected)
- Product Design Life: 12 years
- Dimensions (H x L x W): 150mm x 50mm x 300mm
- Weight: 1.2 kg
Key Features
- Surface mount installation with polycarbonate body and PMMA diffuser
- Maintained emergency mode with 90 minutes duration
- Wireless and DALI DT1 emergency driver options
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless
- Viewing distance of 24 meters
- IP20 rated for indoor use
- Long product design life of 12 years
- Emergency output power options: 350 mW or 650 mW
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring maintained emergency lighting
- Industrial sites needing wireless monitored emergency exit signs
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Low standby power consumption reduces energy usage
- Long product design life minimizes waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Razor Surface Mount Emergency Exit sign is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
