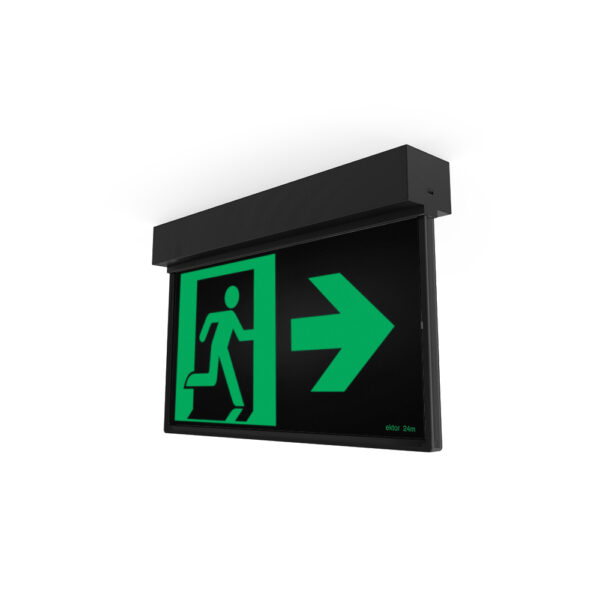

Ektor Lynk Razor Surface Mount Emergency Exit | Wireless & DALI DT1 | Maintained Mode | 90 Min Duration | by Ektor
The Ektor Lynk Razor Surface Mount Emergency Exit is designed for reliable emergency signage in commercial and industrial settings. Featuring a wireless and DALI DT1 emergency driver, this maintained exit sign provides 90 minutes of illumination during power outages, ensuring safety compliance. With a viewing distance of 24 meters and a robust polycarbonate body, it's perfect for public facilities and office environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Wireless Emergency Exit Light, Maintained Emergency Exit Sign, Surface Mount Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Maximum Wattage: 2 W to 2.6 W depending on model
- Standby Power: 1.7 W to 1.9 W depending on model
- Emergency Output Power: 350 mW to 650 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Driver Type: DALI DT1 Emergency or Wireless IEC62386-104 with DT1
- Wiring Type: Re-wireable terminal block (2 or 5 pin)
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Operating Temperature Range: 0 to 40 °C
- Emergency Light Source Life: 34 years 4 months to 51 years 1 month
- Decal Size: 300 x 150 mm
- Dimensions (H x L x W): 150mm x 50mm x 300mm
- Weight: 1.2 kg
Key Features
- Surface mount installation with polycarbonate body and PMMA diffuser
- Maintained emergency mode with 90 minutes duration
- Wireless and DALI DT1 emergency driver options
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless
- Viewing distance of 24 meters
- Low standby power consumption
- Product design life of 12 years
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring maintained emergency lighting
- Industrial and office environments for safety compliance
Standards & Compliance
- AS/NZS 60598.1 – Luminaires
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product design life minimizes waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Razor Surface Mount Emergency Exit - Pro W/Wireless is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
