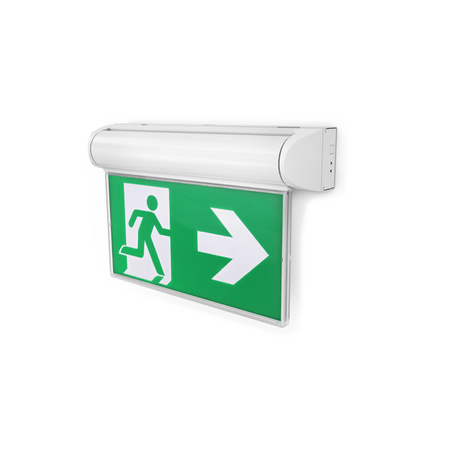

Ektor Lynk Razor Swing Surface Mount Exit | Wireless DALI DT1 | 90 Min Emergency Duration | 24m Viewing Distance | by Ektor
The Ektor Lynk Razor Swing Surface Mount Exit is designed for reliable emergency exit signage in commercial and public buildings. Featuring a wireless DALI DT1 emergency driver, it offers a maintained emergency mode with a 90-minute duration and a 24-meter viewing distance. Built with a durable polycarbonate body and PMMA diffuser, this exit sign ensures safety and compliance with Australian standards, making it ideal for corridors, stairwells, and exit routes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Wireless Emergency Exit Sign, DALI Emergency Exit Light, Surface Mount Exit Sign, Razor Swing Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Maximum Wattage: 3.7 W
- Standby Power: 1.7 W
- Input Frequency: 50 Hz
- Emergency Duration: 90 minutes
- Emergency Output Power: 750 mW
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Driver Type: Wireless DALI DT1 Emergency
- Installation Type: Surface mount
- Operating Temperature Range: 0 to 40 °C
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Wiring Type: Re-wireable terminal block (5 pin)
- Dimmable: No
- Dimensions (H x L x W): 150mm x 80mm x 300mm
- Weight: 1.5 kg
Key Features
- Adjustable surface mount design with polycarbonate body and PMMA diffuser
- Wireless DALI DT1 emergency driver with integrated driver included
- Maintained emergency mode with 90 minutes duration and 24m viewing distance
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless protocols
- Low standby power consumption of 1.7W
- Product design life of 12 years with LED light source life projection up to 31 years
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards and proper integration with emergency lighting systems.
Applications
- Commercial and public buildings emergency exit signage
- Surface mount installation in corridors, stairwells, and exit routes
- Maintained emergency lighting systems requiring wireless monitoring
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long product and LED life reduces waste and replacement frequency
- Wireless monitoring reduces need for manual testing, saving resources
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Razor Swing Surface Mount Exit 24M PRO with wireless is available for immediate purchase, ideal for commercial and public building emergency exit signage applications.
