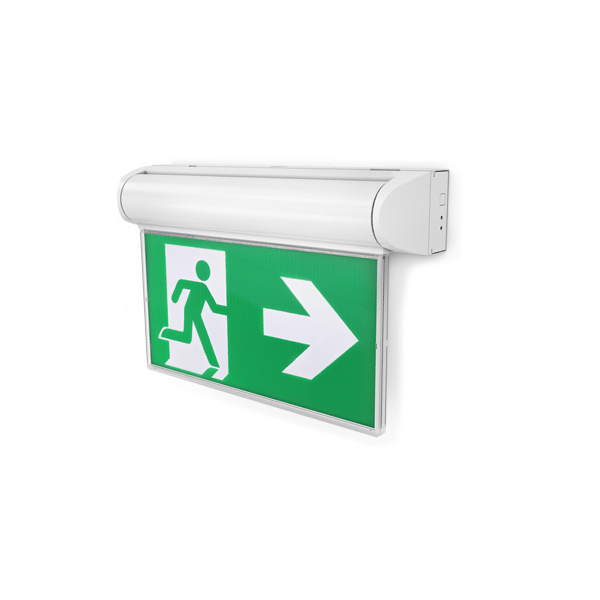

Ektor Lynk Razor Swing Surface Mounted Exit | Wireless DALI Driver | 90 Min Emergency Duration | 24m Viewing Distance | by Ektor
The Ektor Lynk Razor Swing Surface Mounted Exit is designed for reliable emergency exit signage in commercial and public buildings. Featuring a wireless DALI driver, 90 minutes of emergency duration, and a 24m viewing distance, this exit sign ensures safety and compliance in corridors and stairwells. Built with a durable polycarbonate body and PMMA diffuser, it combines functionality with a sleek design, making it ideal for environments requiring maintained emergency lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Wireless Exit Sign, Surface Mounted Exit Light, DALI Emergency Exit Sign, Maintained Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Maximum Wattage: 3.7 W
- Input Frequency: 50 Hz
- Standby Power: 1.7 W
- Driver Type: DALI DT1 Emergency with wireless IEC62386-104
- Emergency Mode: Maintained
- Emergency Output Power: 750 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Classification: C0:E6.3, C90:E16
- Decal Size: 300 x 150 mm
- Working Temperature Range: 0 to 40 °C
- Dimensions (H x L x W): 200mm x 100mm x 350mm
- Weight: 1.5 kg
Key Features
- Adjustable fitting for optimal light direction
- Surface mount installation with polycarbonate body and PMMA diffuser
- Integrated DALI DT1 Emergency driver with wireless IEC62386-104 monitoring
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Low standby power consumption of 1.7 W
- Product design life of 12 years
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and safety standards and proper integration with emergency lighting systems.
Applications
- Commercial and public buildings for emergency exit signage
- Surface mounted installation in corridors, stairwells, and exit routes
- Suitable for environments requiring maintained emergency lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption reduces energy usage and operational costs
- Long product design life minimizes waste and replacement frequency
- Wireless monitoring reduces the need for manual testing, saving resources
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Razor Swing Surface Mounted Exit 24M - PRO with Wireless is available for immediate purchase, ideal for commercial and public building emergency exit signage applications.
