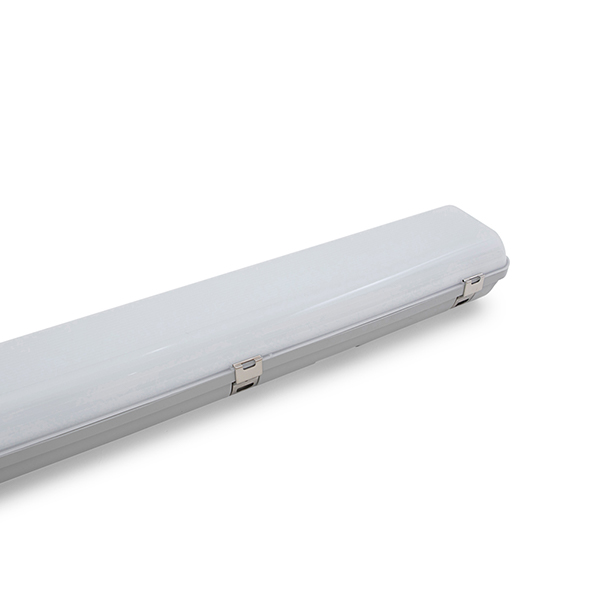

Ektor Lynk Umbra 1200mm LED IP65 Batten | 147 lm/W Efficiency | DALI DT6 Driver | Wireless Support | by Ektor
The Ektor Lynk Umbra 1200mm LED IP65 Batten is designed for versatile lighting solutions, offering an impressive efficiency of up to 147 lm/W. Ideal for both commercial and industrial applications, this batten features a robust IP65 rating for dust and water protection, along with DALI DT6 driver support for seamless integration into smart lighting systems. With a long LED lifetime of over 102,000 hours, it ensures reliable performance and reduced maintenance costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, IP65 LED Batten, Wireless LED Batten, Emergency LED Batten, DALI LED Batten
Technical Specifications
- Total system efficiency up to 147 lm/W
- IP65 rated enclosure for dust and water protection
- IK08 impact resistance
- Operating temperature range -20 to 40 °C or 0 to 40 °C depending on model
- Input voltage 230Vac (216-253Vac range)
- Power factor 0.95
- Maximum wattage 33 W for 1200mm model
- Colour temperature 4000 K
- CRI >84
- LED voltage 36 V for 1200mm model
- LED current 850 mA for 1200mm model
- LED lifetime >102000 hours (TM-21 report)
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt mains rated DALI switch input supporting IEC62386-301/302/303
- DALI device type 51 power monitoring
- Emergency maintained mode with 90 minutes duration
- Emergency lumen output 700 lm for 1200mm emergency models
- Microwave sensor with 10 m detection range (sensor models)
- Short Term Light Modulation (PstLM) <1.0
- Stroboscopic Visibility Measure (SVM) <0.4
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Surface mount installation
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt mains rated DALI switch input
- Dimmable with flicker-free dimming
- Inbuilt DALI-2 sensor with microwave detection option
- Maintained emergency mode with 90 minutes duration
- Power factor of 0.95
- Low standby power consumption
- Colour rendering index (CRI) >84
- 3-step MacAdam ellipse colour consistency
- LED lifetime >102000 hours
- Emergency lumen output up to 700 lm
- Supports DALI power monitoring and emergency test/monitoring
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency and sensor-controlled lighting environments
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS CISPR 15
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS 60598.2.22
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- High energy efficiency reduces power consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Low standby power consumption conserves energy
- Dimmable and sensor options optimize lighting usage
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor Lynk Umbra 1200mm LED IP65 Batten PRO with wireless is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
