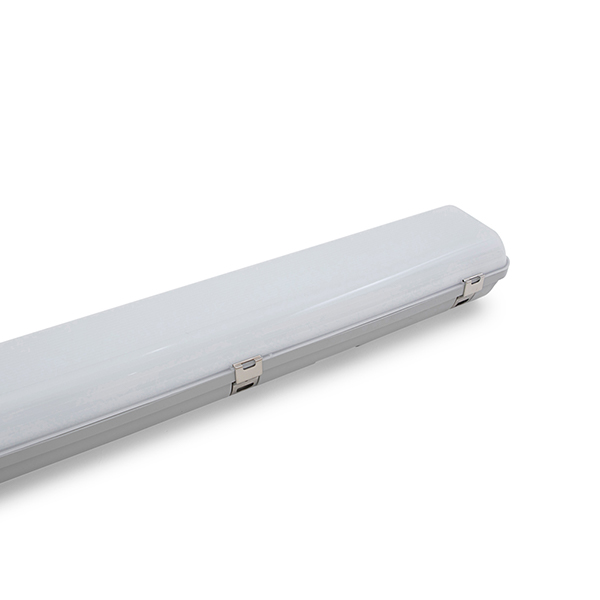

Ektor Lynk Umbra 1200mm LED IP65 Batten with Sensor | 147 lm/W Efficiency | IK08 Impact Resistance | by Ektor
The Ektor Lynk Umbra 1200mm LED IP65 Batten with Sensor is designed for versatile lighting solutions in commercial and industrial settings. With an impressive efficiency of up to 147 lm/W and an IK08 impact resistance rating, this batten light ensures durability and performance. Ideal for both indoor and outdoor applications, it features a microwave sensor for enhanced energy efficiency and a maintained emergency mode for safety during power outages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, IP65 LED Batten, Emergency LED Batten, DALI LED Batten, Sensor LED Batten Light
Technical Specifications
- Total system efficiency up to 147 lm/W
- IP65 rated enclosure with IK08 impact resistance
- Operating temperature range -20 to 40 °C or 0 to 40 °C depending on model
- Input voltage 230Vac with tolerance -6%/+10%
- Power factor 0.95
- Maximum wattage 33 W for 1200mm models
- LED voltage 36 V, current 850 mA for 1200mm models
- Colour temperature 4000 K with CRI >84
- LED lifetime >102,000 hours (TM-21 report)
- DALI DT6 driver with wireless IEC62386-104 support
- Microwave sensor with 10 m detection range and DALI 2 communication
- Emergency maintained mode with 90 minutes duration and 700 lm output
- Inbuilt DALI-2 support for power monitoring (Device type 51)
- Dimensions (H x L x W): 70mm x 1200mm x 60mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated for dust and water resistance
- IK08 impact resistance
- Surface mount installation
- Inbuilt mains rated DALI switch supporting IEC62386 standards
- Power factor of 0.95
- DALI DT6 LED driver with wireless IEC62386-104 support
- Dimmable with flicker-free dimming
- Microwave sensor with 10m detection range and DALI 2 communication
- Maintained emergency mode with 90 minutes duration
- Long LED lifetime over 102,000 hours
- Colour rendering index (CRI) >84 with 4000K CCT
- Low standby power consumption (0.3 W)
- Power monitoring via DALI Device type 51
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency and sensor-controlled lighting environments
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS CISPR 15
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS 60598.2.22
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables energy management and optimization
- Low standby power reduces unnecessary energy use
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor Lynk Umbra 1200mm LED IP65 Batten with Sensor PRO Wireless is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
