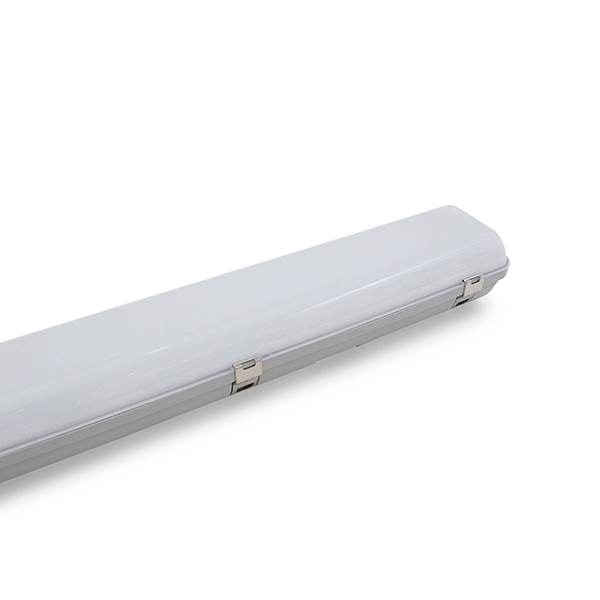

Ektor Lynk Umbra 1200mm LED IP65 EM Batten | 147 lm/W Efficiency | DALI DT6 Driver | Wireless Support | by Ektor
The Ektor Lynk Umbra 1200mm LED IP65 EM Batten is designed for versatile lighting solutions, offering an impressive efficiency of up to 147 lm/W. With its durable polycarbonate body and IK08 impact resistance, this batten is perfect for both commercial and emergency lighting applications. The DALI DT6 driver with wireless support ensures seamless integration into smart lighting systems, making it an ideal choice for modern installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Emergency LED Batten, IP65 LED Batten, DALI LED Batten, Wireless LED Batten Light
Technical Specifications
- Total system efficiency up to 147 lm/W
- IP65 rated enclosure with IK08 impact resistance
- Polycarbonate body and diffuser
- Operating temperature range -20 to 40 °C (standard), 0 to 40 °C (emergency)
- Input voltage 230Vac (-6%/+10%)
- Power factor 0.95
- Maximum wattage 33 W (1200mm models)
- Colour temperature 4000 K
- Colour rendering index (CRI) >84
- LED voltage 36 V (1200mm models)
- LED current 850 mA (1200mm models)
- LED lifetime >102000 hours (TM-21 report)
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt mains rated DALI switch input supporting IEC62386-301/302/303
- Maintained emergency mode with 90 minutes duration and 700 lm emergency output
- Microwave sensor option with 10 m detection range and DALI 2 communication
- Flicker metrics: PstLM ≤ 1.0, SVM ≤ 0.4
- Dimensions (H x L x W): 60mm x 1200mm x 70mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Polycarbonate body and diffuser for durability
- Inbuilt mains rated DALI switch input
- DALI DT6 LED driver with wireless IEC62386-104 support
- Maintained emergency mode with 90 minutes duration
- Microwave sensor option with DALI 2 communication
- Flicker free dimming with DALI-2 application controllers
- Power factor of 0.95
- Standby power as low as 0.3 W
- Long LED lifetime >102000 hours
- 3-step MacAdam ellipse colour consistency
- Colour rendering index (CRI) >84
- Operating temperature range -20 to 40 °C (standard), 0 to 40 °C (emergency models)
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency lighting applications
- DALI-2 compliant control systems
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 2293.3
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low standby power reduces energy use during inactive periods
- DALI-2 compatibility enables smart lighting control for energy savings
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty terms.
Available Now
The Ektor Lynk Umbra 1200mm LED IP65 EM Batten PRO with wireless is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
