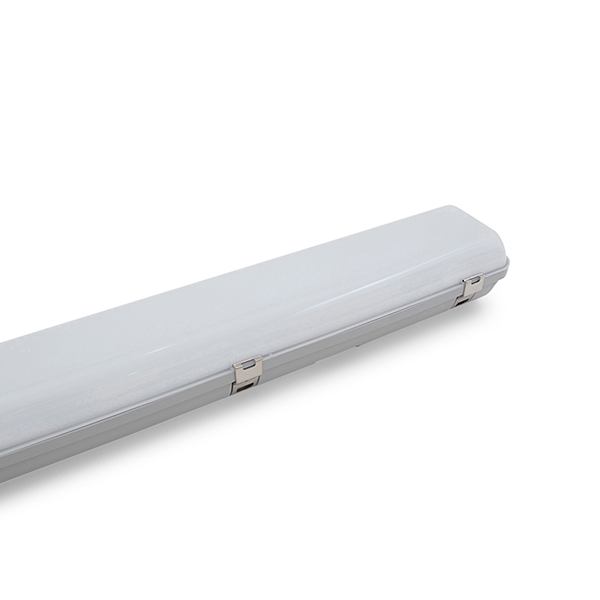

Ektor Lynk Umbra 1200mm LED IP65 EM Batten Sensor | 147 lm/W | Microwave Sensor | DALI DT6 Driver | by Ektor
The Ektor Lynk Umbra 1200mm LED IP65 EM Batten Sensor is designed for versatile lighting solutions, featuring an impressive efficiency of up to 147 lm/W and a robust IP65 rating for dust and water protection. Ideal for commercial and industrial applications, this batten light includes a microwave sensor for automatic activation and a DALI DT6 driver for seamless integration into smart lighting systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Emergency LED Batten, IP65 LED Batten, Sensor LED Batten, Wireless LED Batten
Technical Specifications
- Total system efficiency up to 147 lm/W
- Input voltage: 230Vac (216-253Vac range)
- Operating temperature: -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Power factor: 0.95
- Maximum wattage: 33 W (1200mm models)
- Standby power: 0.3 W
- Colour temperature: 4000 K
- CRI: >84
- LED voltage: 36 V (1200mm models)
- LED current: 850 mA (1200mm models)
- LED lifetime: >102000 hours (TM-21 report)
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt DALI-2 sensor with microwave detection and DALI 2 communication
- Emergency duration: 90 minutes
- Emergency lumen output: 700 lm (1200mm emergency models)
- IP rating: IP65
- IK rating: IK08
- Body and diffuser material: Polycarbonate
- Installation type: Surface mount
- Dimensions (H x L x W): 70mm x 1200mm x 60mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 147 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Surface mount installation
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt mains rated DALI switch input
- Microwave sensor with 10m detection range and DALI 2 communication
- Maintained emergency mode with 90 minutes duration
- Colour rendering index (CRI) >84 with 4000K CCT
- Long LED lifetime >102000 hours
- Dimmable with flicker-free dimming
- Power factor 0.95
- Low standby power consumption (0.3 W)
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency and sensor-controlled lighting environments
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General requirements and tests
- AS/NZS 60598.2.1 – Luminaires Particular requirements for fixed general purpose luminaires
- AS/NZS 2293.3 – Emergency escape lighting and exit signs
- AS/NZS 61347.1 – Lamp control gear General and safety requirements
- AS/NZS 61347.2.13 – Particular requirements for d.c. or a.c. supplied electronic control gear for LED modules
- AS/NZS 4268 – Control gear for LED modules
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime reduces waste and replacement frequency
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor Lynk Umbra 1200mm LED IP65 EM Batten Sensor-PRO with wireless is available for immediate purchase. Ideal for commercial, industrial, and emergency lighting applications requiring robust, efficient, and sensor-integrated luminaires.
