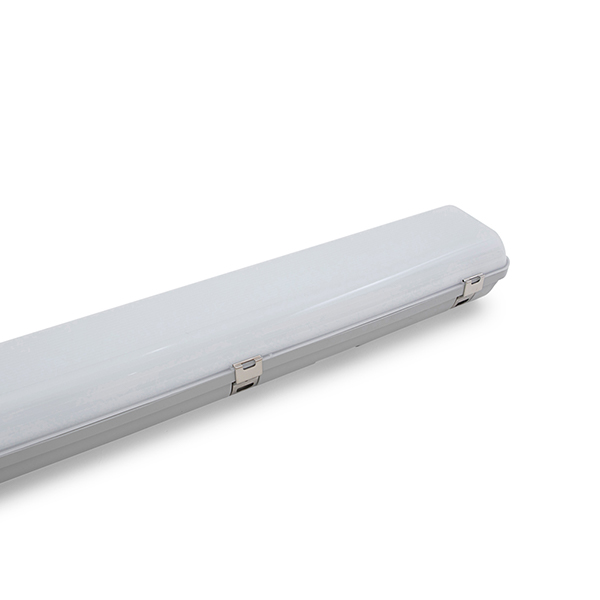

Ektor Lynk Umbra 600mm LED IP65 Batten | 142 lm/W Efficiency | DALI DT6 Driver | Wireless Support | by Ektor
The Ektor Lynk Umbra 600mm LED IP65 Batten is designed for versatile lighting solutions, featuring an impressive efficiency of up to 142 lm/W and a robust IP65 rating for dust and water protection. Ideal for commercial and industrial applications, this batten includes a DALI DT6 driver for seamless integration with control systems and offers wireless capabilities for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, IP65 LED Batten, Wireless LED Batten, Emergency LED Batten, DALI LED Batten
Technical Specifications
- Total system efficiency up to 142 lm/W
- IP65 rated enclosure for dust and water protection
- IK08 impact resistance
- Polycarbonate body and diffuser
- Operating temperature range -20 to 40 °C or 0 to 40 °C depending on model
- Input voltage 230Vac (216-253Vac range)
- Power factor 0.95
- Maximum wattage 20W for 600mm models
- Colour temperature 4000K
- CRI >84
- LED voltage 24V (600mm models)
- LED current 650mA (600mm models)
- LED lifetime >102,000 hours (TM-21 report)
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt mains rated DALI switch input
- Dimmable with flicker-free dimming
- Emergency maintained mode with 90 minutes duration and 350 lm output (600mm EM models)
- Inbuilt DALI-2 sensor with microwave detection (optional)
- Dimensions (H x L x W): 70mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- High system efficiency up to 142 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Surface mount installation
- DALI DT6 LED driver with wireless IEC62386-104 support
- Inbuilt mains rated DALI switch input
- Dimmable with flicker-free dimming
- Inbuilt DALI-2 sensor with microwave detection (optional)
- Maintained emergency mode with 90 minutes duration
- Power factor of 0.95
- Colour rendering index (CRI) >84
- LED lifetime >102,000 hours
- Operating temperature range -20 to 40 °C or 0 to 40 °C depending on model
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency and sensor-controlled lighting environments
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable and sensor options optimize energy use
- Low standby power consumption
Warranty Information
Standard manufacturer warranty applies. Please contact Ektor for specific warranty details.
Available Now
The Ektor Lynk Umbra 600mm LED IP65 Batten PRO with wireless is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
