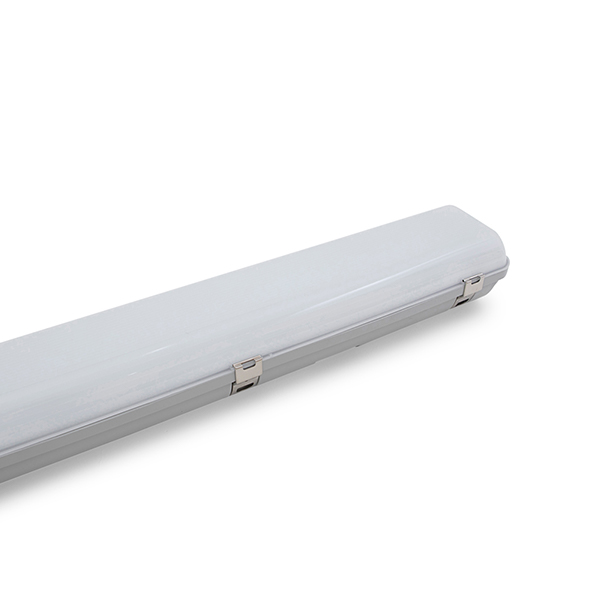

Ektor Lynk Umbra 600mm LED IP65 Batten with Sensor | Wireless & DALI Compatible | High Efficiency 147 lm/W | by Ektor
The Ektor Lynk Umbra 600mm LED IP65 Batten with Sensor is designed for versatile lighting solutions, featuring a wireless DALI-compatible driver and an impressive efficiency of up to 147 lm/W. Ideal for commercial and industrial applications, this batten light ensures reliable performance with its IP65 rating for dust and water protection, making it perfect for both indoor and outdoor environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light with Sensor, IP65 LED Batten, Wireless LED Batten, Emergency LED Batten Light
Technical Specifications
- Total system efficiency up to 147 lm/W
- Input voltage: 230Vac (216-253Vac range)
- Power factor: 0.95
- Maximum wattage: 20 W for 600mm models
- Colour temperature: 4000 K
- Colour rendering index (CRI): >84
- LED voltage: 24 V for 600mm models
- LED current: 650 mA for 600mm models
- LED lifetime: >102,000 hours (TM-21 report)
- Dimmable with DALI DT6 driver
- Standby power: 0.3 W
- Short Term Light Modulation (PstLM): ≤1.0
- Stroboscopic Visibility Measure (SVM): ≤0.4
- Sensor type: Microwave with 10 m detection range
- Emergency duration: 90 minutes
- Emergency lumen output: 350 lm for 600mm models
- Driver mode: Constant current
- Wiring: Re-wireable terminal block (6 pin)
- Dimensions (H x L x W): 70mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Polycarbonate body and diffuser for durability
- Inbuilt mains rated DALI switch supporting IEC62386 standards
- Wireless DALI DT6 LED driver with flicker-free dimming
- Microwave sensor with 10m detection range and DALI 2 communication
- Maintained emergency mode with 90 minutes duration
- High system efficiency up to 147 lm/W
- Colour rendering index (CRI) greater than 84
- 3-step MacAdam ellipse for colour consistency
- LED lifetime over 102,000 hours
- DALI device type 51 power monitoring for energy management
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency and sensor-controlled lighting environments
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 4268 – EMC Requirements for Lighting Equipment
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- IEC 62386-102, IEC 62386-103, IEC 62386-104 – DALI Control Protocols
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring supports energy management and reduction
- Low standby power consumption (0.3 W) reduces energy waste
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor Lynk Umbra 600mm LED IP65 Batten with Sensor PRO Wireless is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
