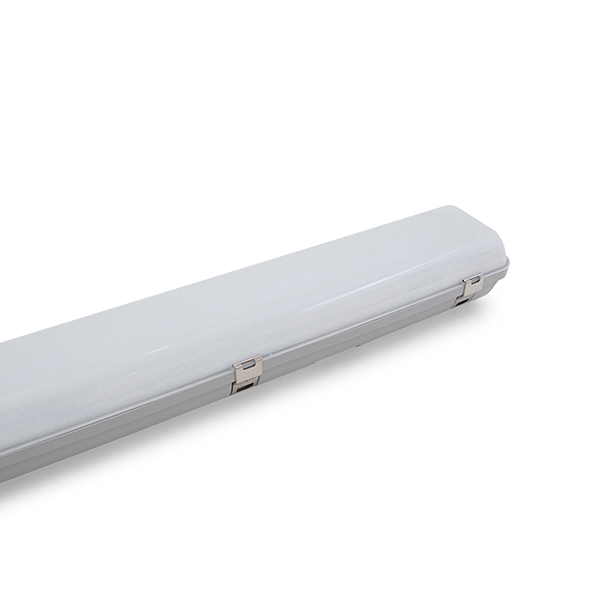

Ektor Lynk Umbra 600mm LED IP65 EM Batten Sensor | 142 lm/W Efficiency | DALI DT6 Wireless | by Ektor
The Ektor Lynk Umbra 600mm LED IP65 EM Batten Sensor is designed for versatile lighting solutions, featuring an impressive efficiency of up to 142 lm/W and a robust IP65 rating for dust and water protection. Ideal for commercial and industrial applications, this batten light includes a microwave sensor with a 10m detection range and DALI DT6 wireless support, ensuring reliable performance in emergency and sensor-controlled environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Batten Light, Emergency LED Batten, IP65 LED Batten, Sensor LED Batten, Wireless LED Batten Light
Technical Specifications
- Total system efficiency up to 142 lm/W
- IP65 rated enclosure with IK08 impact resistance
- Operating temperature range -20 to 40 °C (standard), 0 to 40 °C (emergency models)
- Input voltage 230Vac with tolerance -6%/+10%
- Standby power 0.3 W
- Colour rendering index (CRI) >84
- Colour temperature 4000 K
- LED voltage 24 V (600mm models)
- LED current 650 mA (600mm models)
- LED lifetime >102,000 hours (TM-21 report)
- DALI DT6 driver with wireless IEC62386-104 support
- Microwave sensor with 10 m detection range and DALI 2 communication
- Emergency duration 90 minutes with 350 lm output
- Power factor 0.95
- Dimmable with flicker-free dimming
- Re-wireable 6 pin terminal block
- Dimensions (H x L x W): 70mm x 600mm x 600mm
- Weight: 1.5 kg
Key Features
- High system efficiency up to 142 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Surface mount installation
- Inbuilt mains rated DALI switch supporting IEC62386 standards
- Power factor of 0.95
- DALI DT6 LED driver with wireless IEC62386-104 support
- Dimmable with flicker-free dimming
- Microwave sensor with 10m detection range and DALI 2 communication
- Maintained emergency mode with 90 minutes duration
- Emergency lumen output of 350 lm
- LED lifetime over 102,000 hours
- Colour temperature 4000K with CRI >84
- 3-step MacAdam ellipse for colour consistency
- Re-wireable terminal block (6 pin)
- Power monitoring with DALI device type 51
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency and sensor-controlled lighting environments
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS CISPR 15
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables energy management and optimization
Warranty Information
Standard manufacturer warranty applies; please contact Ektor for specific warranty details.
Available Now
The Ektor Lynk Umbra 600mm LED IP65 EM Batten Sensor PRO with Wireless is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
