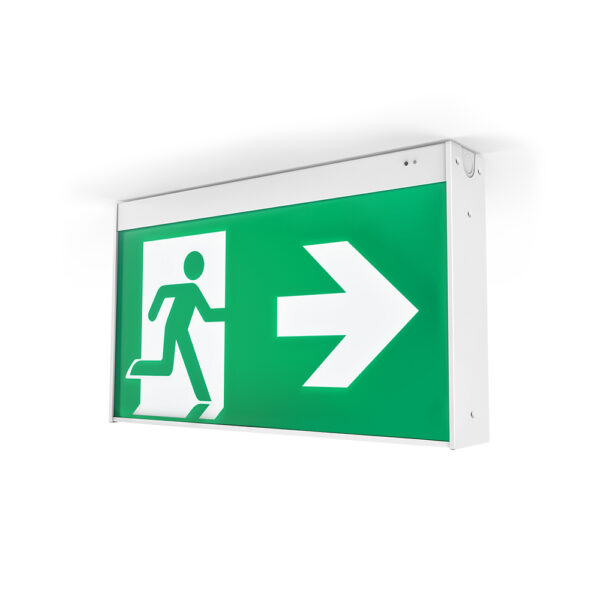

Ektor Mercury 40M Jumbo Emergency LED Exit | Maintained Mode | DALI Monitored | 90 Minutes Duration | by Ektor
The Ektor Mercury 40M Jumbo Emergency LED Exit is designed for reliable emergency signage in commercial buildings. With a maintained emergency mode providing 90 minutes of illumination and a viewing distance of 40 meters, this exit sign ensures safety compliance. Built with a durable powder-coated steel body and polycarbonate diffuser, it supports DALI monitoring for efficient emergency testing and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Exit Sign, Jumbo LED Exit Sign, Emergency Exit Light, LED Exit Signage, DALI Emergency Exit Light
Technical Specifications
- IP Rating: IP20
- Body Material: Powder coated steel
- Diffuser Material: Polycarbonate
- Installation Type: Wall or Ceiling
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 4.5 W
- Input Voltage: 230Vac (-6%/+10%)
- Standby Power: 2.5 W
- Driver Type: DALI DT1 Emergency
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Mode: Maintained
- Emergency Output Power: 1400 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 40 meters
- Decal Size: 500 x 250 mm
- Emergency Control: DALI Monitored (DT1)
- Emergency Light Source Life: >20 years
- Product Design Life: 12 years
- Dimensions (H x L x W): 250mm x 100mm x 500mm
- Weight: 2.5 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- DALI DT1 Emergency driver included with DALI monitored control
- Viewing distance of 40 meters
- Powder coated steel body with polycarbonate diffuser
- Supports emergency test and monitoring over DALI IEC62386
- Product design life of 12 years
- Emergency output power of 1400 mW
- IP20 rated for indoor use
- Non-dimmable
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with emergency lighting standards and proper DALI system integration.
Applications
- Emergency exit signage for commercial buildings
- Wall or ceiling installation in public and commercial spaces
- Maintained emergency lighting for safety compliance
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Long product design life reduces waste and replacement frequency
- Low standby power consumption minimizes energy use
- LED technology offers energy-efficient emergency lighting
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Mercury 40M Jumbo Emergency LED Exit - PRO in Black is available for immediate purchase, ideal for commercial and public building emergency exit signage.
