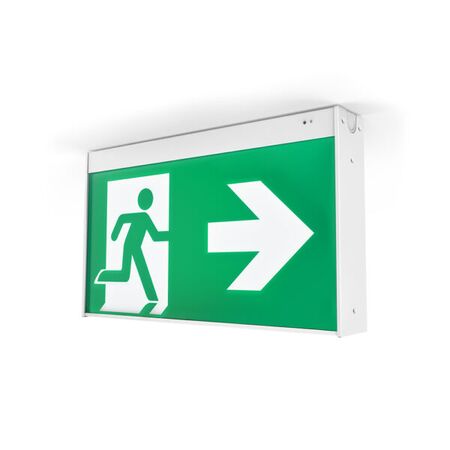

Ektor Mercury 40M Jumbo Emergency LED Exit | Maintained Mode | DALI Driver Included | 90 Minutes Duration | by Ektor
The Ektor Mercury 40M Jumbo Emergency LED Exit is designed for reliable emergency signage in commercial buildings. With a maintained emergency mode providing 90 minutes of illumination and a DALI DT1 driver for monitoring, this exit sign ensures safety compliance. Its durable powder-coated steel body and polycarbonate diffuser make it ideal for wall or ceiling installation, offering a viewing distance of 40 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency LED Exit Sign, Jumbo LED Exit Sign, Maintained Emergency Exit Light, DALI Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Maximum Wattage: 4.5 W
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Standby Power: 2.5 W
- Emergency Output Power: 1400 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 40 meters
- Decal Size: 500 x 250 mm
- Driver Type: DALI DT1 Emergency or Wireless IEC62386-104
- Installation Type: Wall or Ceiling
- Working Temperature Range: 0 to 40 °C
- Body Material: Powder coated steel
- Diffuser Material: Polycarbonate
- Dimmable: No
- Wiring Type: Re-wireable terminal block (5 pin)
- Dimensions (H x L x W): 250mm x 100mm x 500mm
- Weight: 2 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- DALI DT1 Emergency driver included with monitoring capabilities
- Wireless IEC62386-104 option available for remote test and monitoring
- Powder coated steel body with polycarbonate diffuser
- Viewing distance of 40 meters
- Supports emergency test and monitoring over DALI with full IEC compliance
- Product design life of 12 years including LEDs, drivers, and enclosure
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with Australian safety standards and proper emergency system integration.
Applications
- Emergency exit signage for commercial buildings
- Wall or ceiling installation in public and private facilities
- Maintained emergency lighting for safety compliance
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Long LED life reduces waste and replacement frequency
- Low standby power consumption minimizes energy use
- Durable materials extend product lifespan, reducing environmental impact
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Mercury 40M Jumbo Emergency LED Exit - PRO is available for immediate purchase, ideal for commercial and public building emergency exit signage.
