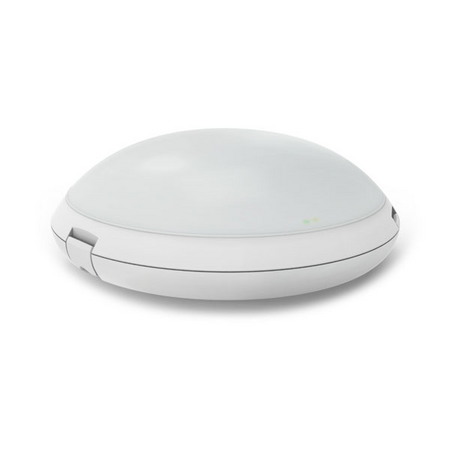

Ektor Pearl Circular Pro 25W | IP65 Rated | Tuneable White | DALI-2 Compatible | by Ektor
The Ektor Pearl Circular Pro 25W is an IP65 rated LED light designed for both indoor and outdoor applications. With a tuneable white color temperature ranging from 3000K to 6500K, it offers flexibility for various lighting needs. Ideal for commercial and industrial settings, this light features a DALI-2 compatible driver for seamless integration into smart lighting systems, ensuring energy efficiency and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Pearl Pro IP65 LED Light, Ektor Tuneable White LED Surface Light, Ektor DALI LED Emergency Light
Technical Specifications
- Power: 25W (27W for emergency models)
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >84
- Colour Temperature: Tuneable White 3000K to 6500K
- Lumens Output: >3200 lm
- LED Voltage: 33 V, Current: 650 mA
- Operating Temperature: 0 to 40 °C
- IP Rating: IP65
- IK Rating: IK08
- Switch Type: Inbuilt mains rated DALI switch supporting IEC62386-301, 302, 303
- Dimming: DALI DT8 flicker-free dimmable
- Sensor: Optional microwave sensor with DALI 2 communication
- Emergency: Maintained mode, 90 minutes duration, DALI monitored
- Power Factor: 0.95
- Standby Power: 0.3 W
- Wiring: Re-wireable 6 pin terminal block
- Short Term Light Modulation (PstLM): 0.08
- Stroboscopic Visibility Measure (SVM): 0.018
- Dimensions (H x L x W): 80mm x 300mm x 300mm
- Weight: 2.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Tuneable white colour temperature from 3000K to 6500K
- DALI-2 DT8 dimmable driver with flicker-free dimming and colour control
- Inbuilt mains rated DALI switch input supporting multiple IEC62386 switch types
- LED lifetime over 120,000 hours with L90B10 rating at 25°C and 40°C
- Power factor of 0.95 and standby power consumption of 0.3W
- Microwave sensor option with DALI 2 communication and corridor function
- Maintained emergency mode with 90 minutes duration and DALI monitored testing
- Polycarbonate body and diffuser with white finish
- Re-wireable 6 pin terminal block wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with DALI-2 control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount installations
- Emergency and general area lighting
- DALI-2 compliant smart lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – Control Gear for LED Modules
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI-2 power monitoring enables energy management and optimization
- Low standby power consumption reduces unnecessary energy use
Warranty Information
Standard 5 years return-to-base warranty. VIP Warranty available with 2 years onsite and 3 years return-to-base for registered users in defined regions.
Available Now
The Ektor Pearl Circular Pro 25W IP65 Tuneable White LED light is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
