Ektor Pearl Circular Pro 25W | IP65 Rated | Tuneable White with Sensor | by Ektor

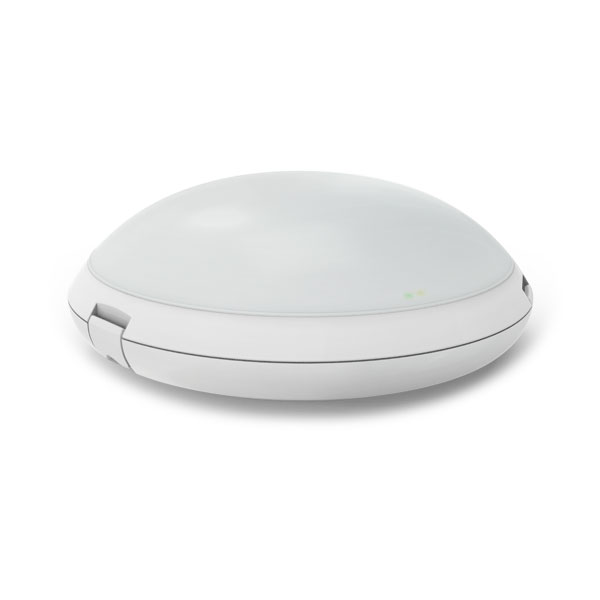

The Ektor Pearl Circular Pro 25W is an IP65 rated LED light designed for both indoor and outdoor use, featuring tuneable white color temperature from 3000K to 6500K. Ideal for commercial and industrial applications, this surface mount luminaire includes a microwave sensor for enhanced functionality and energy efficiency, ensuring optimal lighting control in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ektor Pearl Pro Circular LED Light, Ektor 25W IP65 Tuneable White LED, Ektor Surface Mount LED Luminaire with Sensor
Technical Specifications
- Power: 25W (27W for emergency models)
- Input Voltage: 230Vac (216-253Vac range)
- Frequency: 50 Hz
- Power Factor: 0.95
- Colour Rendering Index (CRI): >84
- Colour Temperature: Tuneable White 3000K to 6500K
- Lumens Output: >3200 lm
- LED Lifetime: >120,000 hours (TM-21 report)
- MacAdam Ellipse: 3-step SDCM
- Driver Type: DALI DT8 Dimmable with full DALI-2 support
- Standby Power: 0.3 W
- Sensor: Microwave with 10m detection range (optional)
- Emergency Duration: 90 minutes (maintained emergency models)
- Power Monitoring: DALI Device type 51
- Short Term Light Modulation (PstLM): 0.08
- Stroboscopic Visibility Measure (SVM): 0.018
- Operating Temperature: 0 to 40 °C
- Wiring: Re-wireable terminal block (6 pin)
- Dimensions (H x L x W): 70mm x 300mm x 300mm
- Weight: 2.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Surface mount installation
- Tuneable white colour temperature from 3000K to 6500K
- DALI-2 DT8 compliant for advanced colour and dimming control
- Inbuilt mains rated DALI switch input
- Microwave sensor option with adjustable settings
- Maintained emergency lighting option with 90 minutes duration
- High power factor of 0.95
- LED lifetime over 120,000 hours
- Luminaire output greater than 3200 lumens
- Low standby power consumption (0.3 W)
- Power monitoring via DALI device type 51
- Flicker free dimming with low short term light modulation (PstLM 0.08) and stroboscopic visibility measure (SVM 0.018)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount installations
- Areas requiring tuneable white lighting and sensor control
- Emergency lighting applications
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
- AS/NZS 4268 – Control Gear for LED Modules
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable and tuneable white features optimize lighting usage
- Low standby power reduces unnecessary energy use
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users under specific terms and conditions.
Available Now
The Ektor Pearl Circular Pro 25W IP65 Tuneable White with Sensor is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
