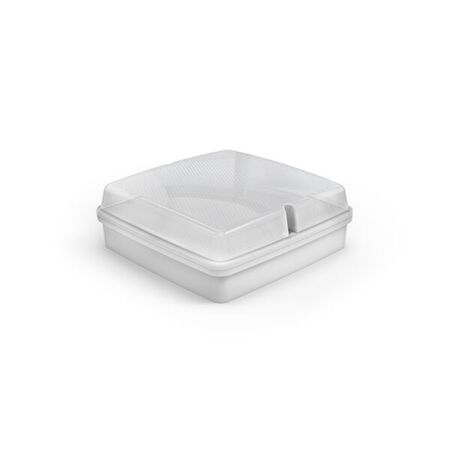

Ektor Quadro LED Bunker IP65 | DALI Dimmable | Tunable White | Emergency Mode | by Ektor
The Ektor Quadro LED Bunker IP65 is designed for versatile lighting solutions, featuring a DALI dimmable driver and tunable white technology with a color temperature range of 3000K to 6500K. Ideal for commercial and industrial applications, this robust light offers emergency mode functionality with a 90-minute duration, ensuring safety and reliability in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED bunker light, IP65 LED bunker, DALI dimmable LED bunker, tunable white LED bunker light, emergency LED bunker light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body and Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Operating Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (-6%/+10%)
- Maximum Wattage: 25 W
- Power Factor: 0.95
- Standby Power: 0.3 W
- LED Voltage: 36 V
- LED Current: 650 mA
- Colour Rendering Index (CRI): >84
- Colour Temperature Range: 3000K to 6500K (Tunable White)
- Luminaire Lumens: >3200 lm
- LED Lifetime: >120,000 hours (TM-21)
- Dimmable: Yes, DALI DT8 and wireless options
- Driver Type: DALI-2 DT8 dimmable with power monitoring
- Wiring: Re-wireable terminal block (6 pin)
- Sensor: Optional microwave sensor with DALI 2 communication
- Emergency Mode: Maintained with 90 minutes duration and 390 lm output
- Product Design Life: 12 years
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 3.5 kg
Key Features
- IP65 and IK08 rated polycarbonate body and diffuser for durability
- Tunable white LED with colour temperature range 3000K to 6500K
- DALI-2 DT8 dimmable driver with flicker-free dimming and colour control
- Inbuilt mains rated DALI switch supporting multiple IEC62386 switch types
- Microwave sensor option with adjustable settings via DALI
- Emergency maintained mode with 90 minutes duration and 390 lm output
- Power factor of 0.95 and standby power consumption of 0.3 W
- LED lifetime >120,000 hours with L90B10 rating at 25°C and 40°C
- Power monitoring support via DALI device type 51
- Short term light modulation (PstLM) of 0.08 and stroboscopic visibility measure (SVM) of 0.018
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with DALI-2 control systems.
Applications
- Commercial and industrial lighting
- Outdoor and indoor surface mount lighting
- Emergency lighting with maintained mode
- DALI-2 compliant smart lighting control systems
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS CISPR 15
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable and tunable white features optimize lighting usage and comfort
- Power monitoring enables energy management and reduction
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Quadro LED Bunker IP65 - PRO is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications requiring robust, tunable white, and DALI-2 compliant solutions.
