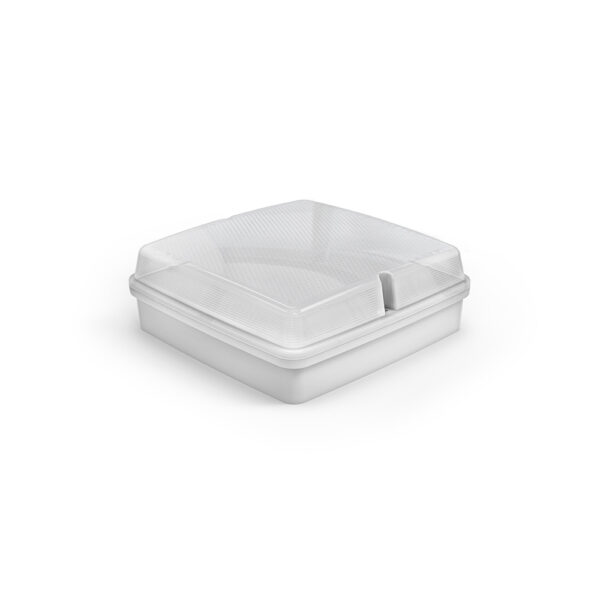

Ektor Quadro LED Bunker | IP65 Rated | DALI Compatible | Tunable White | by Ektor
The Ektor Quadro LED Bunker is an IP65 rated lighting solution designed for commercial and industrial applications. Featuring a DALI-compatible inbuilt switch and tunable white LED technology, it provides flexible lighting options for corridor and emergency situations. With a robust polycarbonate body and a long LED lifetime of over 120,000 hours, this light ensures reliability and efficiency in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED bunker light with sensor, IP65 LED bunker light, corridor function LED light, DALI tunable white LED bunker
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Body and Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Operating Temperature Range: 0 to 40 °C
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Power Factor: 0.95
- Maximum Wattage: 25 W (27 W for emergency models)
- Standby Power: 0.3 W
- Colour Rendering Index (CRI): >84
- Colour Temperature: Tunable White 3000K to 6500K
- LED Voltage: 36 V
- LED Current: 650 mA
- LED Lifetime: >120,000 hours (TM-21)
- Lumen Output: >3200 lm
- Driver Type: DALI DT8 Dimmable with wireless options
- Wiring: Re-wireable terminal block (6 pin)
- Power Monitoring: DALI Device type 51
- Sensor Type: Microwave with corridor function
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 390 lm
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 3 kg
Key Features
- IP65 rated polycarbonate body and diffuser for robust protection
- Inbuilt mains rated DALI switch supporting DALI-2 compliant control systems
- Tunable white LED with colour temperature range 3000K to 6500K
- High LED lifetime >120,000 hours with L90B10 rating at 43,000 hours
- Microwave sensor with corridor function and adjustable settings via DALI
- DALI DT8 dimmable driver with power monitoring and wireless options
- Emergency maintained mode with 90 minutes duration and 390 lm output
- Power factor of 0.95 and standby power consumption of 0.3 W
- Short term light modulation (PstLM) of 0.08 and stroboscopic visibility measure (SVM) of 0.018
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper integration with DALI control systems.
Applications
- Commercial and industrial surface mounted lighting
- Emergency and corridor lighting with sensor control
- Outdoor and indoor environments requiring IP65 protection
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable and sensor control optimize energy usage
- Low standby power consumption reduces unnecessary energy use
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty offers 2 years onsite plus 3 years return-to-base for registered users in defined regions.
Available Now
The Ektor Quadro LED Bunker PRO with corridor function sensor is available for immediate purchase, ideal for commercial and industrial corridor and emergency lighting applications.
