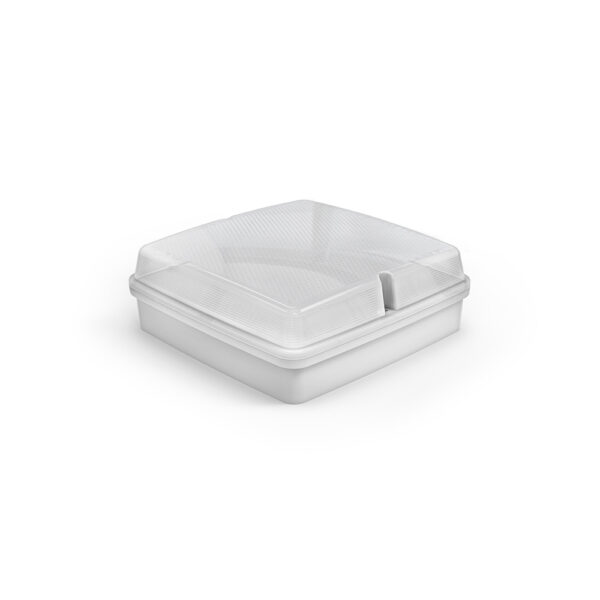

Ektor Quadro LED Bunker Light | IP65 Rated | 130 lm/W Efficiency | Tri-CCT | by Ektor
The Ektor Quadro LED Bunker Light is designed for both indoor and outdoor applications, featuring an impressive IP65 rating for dust and water protection. With a total system efficiency of 130 lm/W and a tri-colour temperature configuration (3000K, 4000K, 6000K), this durable polycarbonate fixture is perfect for commercial, industrial, and emergency lighting needs, ensuring long-lasting performance and energy savings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED bunker light, LED surface mount light, IP65 LED fixture, industrial LED light, emergency LED bunker light
Technical Specifications
- Total system efficiency: 130 lm/W
- IP rating: IP65
- IK rating: IK08
- Body and diffuser material: Polycarbonate
- Installation type: Surface mount
- Operating temperature range: 0 to 40 °C
- Input voltage: 230Vac (-6%/+10%)
- Input frequency: 50 Hz
- System max wattage: 20 W
- Colour rendering index (CRI): >80
- Colour temperature: 3000K, 4000K, 6000K (Tri-CCT)
- MacAdam steps: 5-step ellipse
- LED voltage: 36 V
- LED current: 460 mA
- LED lifetime (L90B10): up to 43,000 hours at 25 °C
- Driver type: Fixed output, included, non-dimmable
- Wiring: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.09
- Stroboscopic Visibility Measure (SVM): 0.012
- Emergency mode: Maintained, 90 minutes duration
- Sensor type (optional): Microwave with adjustable settings
- Dimensions (H x L x W): 90mm x 300mm x 300mm
- Weight: 1.5 kg
Key Features
- High total system efficiency of 130 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Tri-CCT colour temperature configuration (3000K, 4000K, 6000K)
- LED lifetime up to 43,000 hours (L90B10 rating)
- Fixed output driver included, non-dimmable
- Optional microwave sensor with adjustable settings
- Emergency maintained mode with 90 minutes duration
- Low flicker and stroboscopic visibility (PstLM 0.09, SVM 0.012)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Outdoor and indoor surface mounting
- Commercial and industrial lighting
- Emergency lighting with maintained emergency mode
- Corridor and security lighting with sensor options
Standards & Compliance
- AS/NZS 60598 – Luminaires
- AS/NZS 61347 – Lamp control gear
- AS/NZS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics
- AS/NZS 2293.3 – Emergency escape lighting and exit signs
Environmental Benefits
- High energy efficiency reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low flicker and stroboscopic effects improve visual comfort and safety
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users in defined regions.
Available Now
The Ektor Quadro LED Bunker IP65 is available for immediate purchase, ideal for commercial, industrial, and emergency lighting applications.
