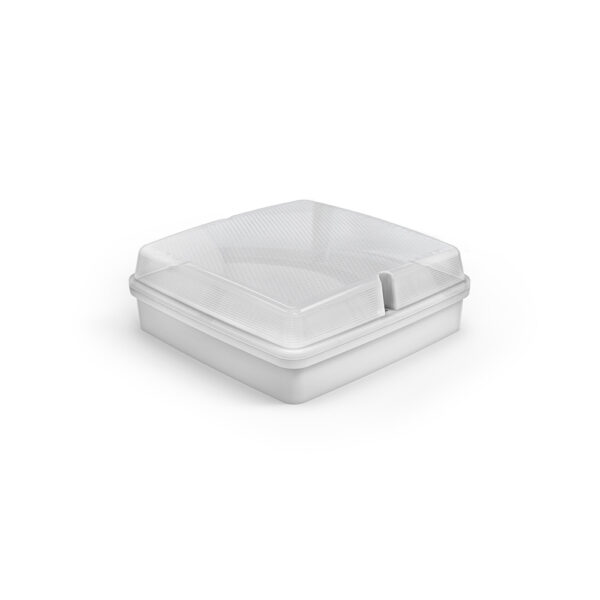

Ektor Quadro LED Bunker Light | IP65 Rated | Microwave Sensor & Corridor Function | by Ektor
The Ektor Quadro LED Bunker Light is designed for commercial and industrial outdoor lighting, featuring an IP65 rating for dust and water protection. With a microwave sensor and corridor function, it ensures efficient lighting in walkways and emergency situations. Built with a durable polycarbonate body, this light offers a high system efficiency of 130 lm/W, making it an ideal choice for energy-conscious users.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED bunker light with sensor, IP65 LED bunker light, corridor function LED bunker, emergency LED bunker light
Technical Specifications
- Total System Efficiency: 130 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- System Max Wattage: 20 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (3000K, 4000K, 6000K)
- Macadam Steps: 5-step MacAdam Ellipse
- LED Voltage: 36 V
- LED Current: 460 mA
- LED Lifetime L90B10 at 25°C: 41000 hrs
- LED Lifetime L90B10 at 40°C: 37000 hrs
- Driver Type: Fixed output, included, non-dimmable
- Wiring Type: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.09
- Stroboscopic Visibility Measure (SVM): 0.012
- Sensor Type: Microwave with 10 m detection range
- Sensor Features: Corridor function, lux adjustment, dusk mode, adjustable hold time, standby level, standby period, and detection area
- Emergency Mode: Maintained with 90 minutes duration
- Replacement Battery Code: 01302
- Product Design Life: 8 years
- Dimensions (H x L x W): 100mm x 150mm x 300mm
- Weight: 1.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistance
- Tri-CCT colour temperature configuration (3000K, 4000K, 6000K)
- Microwave sensor with corridor function and adjustable settings
- Maintained emergency mode with 90 minutes duration
- High system efficiency of 130 lm/W
- Fixed output driver included
- Surface mount installation
- Polycarbonate body and diffuser for durability
- Non-dimmable
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper sensor configuration.
Applications
- Commercial and industrial outdoor lighting
- Corridors and walkways requiring sensor-activated lighting
- Emergency lighting with maintained emergency mode
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS/NZS 61058.1 – Switches for Appliances
- AS/NZS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 4268 – EMC for Lighting Equipment
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low flicker and stroboscopic visibility improve visual comfort and safety
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Quadro LED Bunker IP65 with corridor function sensor is available for immediate purchase, ideal for commercial and industrial outdoor lighting applications requiring sensor control and emergency lighting.
