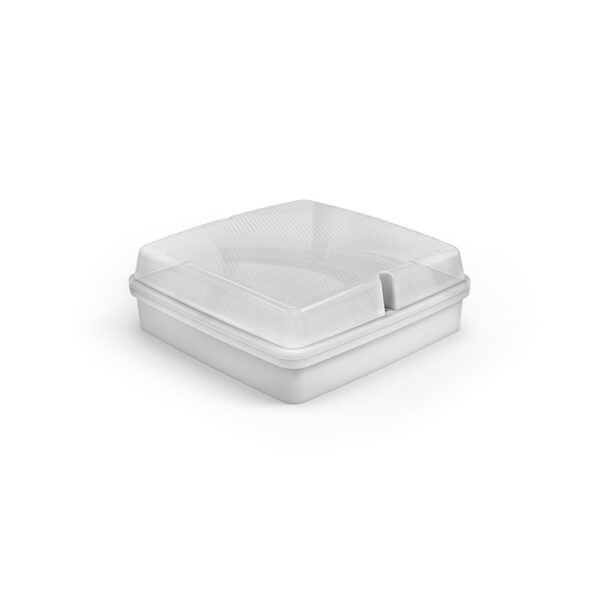

Ektor Quadro LED Emergency Bunker | IP65 Rated | 130 lm/W Efficiency | Surface Mount | by Ektor
The Ektor Quadro LED Emergency Bunker is designed for reliable emergency lighting in commercial and industrial settings. With an impressive 130 lm/W efficiency and an IP65 rating for dust and water protection, this surface mount light ensures safety and visibility in critical areas. Ideal for corridors and emergency exit routes, it features a durable polycarbonate body and a long LED lifetime, making it a smart choice for any facility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Bunker Light, IP65 Emergency LED Light, Surface Mount Emergency Light, Ektor Quadro Emergency Light
Technical Specifications
- Total System Efficiency: 130 lm/W
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- System Max Wattage: 20 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Colour Rendering Index (CRI): >80
- CCT Configuration: Tri-CCT (3000K, 4000K, 6000K)
- Macadam Steps: 5-step MacAdam Ellipse
- LED Voltage: 36 V
- LED Current: 460 mA
- LED Lifetime L90B10: 41000 hrs at 25°C, 37000 hrs at 40°C
- Driver Type: Fixed output, included, non-dimmable
- Wiring Type: Re-wireable terminal block (3 pin)
- Short Term Light Modulation (PstLM): 0.09
- Stroboscopic Visibility Measure (SVM): 0.012
- Emergency Mode: Maintained with 90 minutes duration
- Replacement Battery Code: 01302
- Product Design Life: 8 years
- Dimensions (H x L x W): 100mm x 150mm x 300mm
- Weight: 1.5 kg
Key Features
- High total system efficiency of 130 lm/W
- IP65 rated for dust and water ingress protection
- IK08 impact resistance rating
- Polycarbonate body and diffuser for durability
- Tri-CCT colour temperature configuration (3000K, 4000K, 6000K)
- Colour Rendering Index (CRI) greater than 80
- Fixed output driver included, non-dimmable
- Microwave sensor option with adjustable settings (S suffix)
- Maintained emergency mode with 90 minutes duration (EM suffix)
- Re-wireable terminal block wiring
- Short Term Light Modulation (PstLM) of 0.09 and Stroboscopic Visibility Measure (SVM) of 0.012 ensuring minimal flicker
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Emergency lighting for commercial and industrial buildings
- Surface mount installation in corridors, bunkers, and emergency exit routes
- Suitable for environments requiring IP65 rated lighting solutions
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS/NZS 61058.1 – Switches for Appliances
- AS/NZS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 4268 – EMC for Lighting Equipment
- AS 60598.2.22 – Emergency Luminaires
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime reduces waste and replacement frequency
- Low flicker and stroboscopic effects improve visual comfort and safety
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users in defined regions.
Available Now
The Ektor Quadro LED Emergency Bunker IP65 is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
