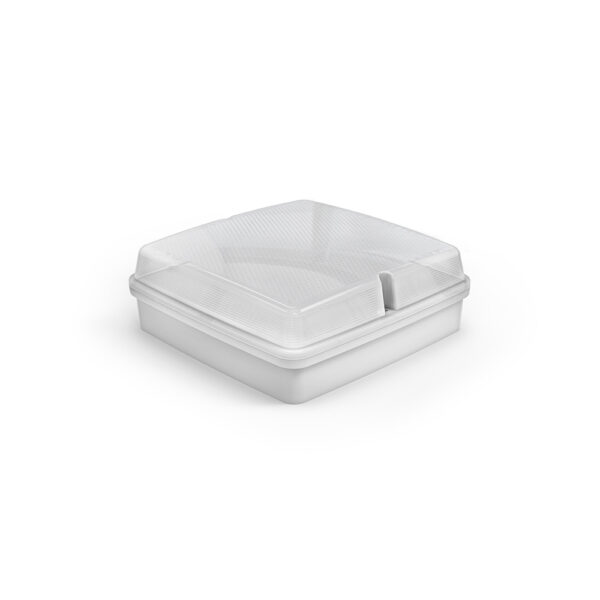

Ektor Quadro LED Emergency Bunker | IP65 Rated | DALI Control & Microwave Sensor | Tunable White | by Ektor
The Ektor Quadro LED Emergency Bunker is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating for dust and water protection, this luminaire features a microwave sensor with corridor function and DALI control for optimal energy management. Ideal for surface-mounted installations, it ensures maintained emergency lighting with a 90-minute duration and a powerful 390 lm output.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Bunker Light, Emergency Corridor Sensor Light, IP65 Emergency LED Luminaire, DALI Emergency Light, Tunable White Emergency Light
Technical Specifications
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 3 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK08 impact resistant polycarbonate body and diffuser
- Inbuilt mains rated DALI switch supporting IEC62386 standards
- Tunable white LED with full DALI-2 DT8 colour control
- High LED lifetime >120,000 hours with L90B10 rating at 25°C and 40°C
- DALI device type 51 power monitoring for energy management
- Microwave sensor with corridor function and adjustable settings
- Maintained emergency mode with 90 minutes duration and 390 lm output
- Wireless options available with IEC62386-104 compliance
- Low standby power consumption of 0.3 W
- Flicker free dimming and colour control
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with DALI control systems and emergency lighting standards.
Applications
- Emergency lighting in commercial and industrial buildings
- Surface mounted installations in corridors and bunkers
- Areas requiring maintained emergency lighting with sensor control
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS/NZS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables optimized energy usage
- Low standby power reduces unnecessary energy use
Warranty Information
Standard 5 years return-to-base warranty. VIP warranty available with 2 years onsite and 3 years return-to-base for registered users in defined regions.
Available Now
The Ektor Quadro LED Emergency Bunker PRO is available for immediate purchase, ideal for commercial and industrial emergency lighting applications requiring advanced sensor and DALI control.
