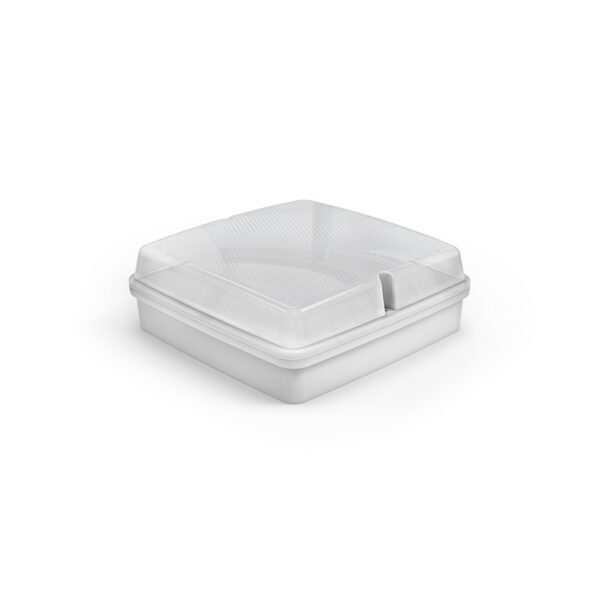

Ektor Quadro LED Emergency Bunker | IP65 Rated | IK08 Impact Resistance | Tunable White | by Ektor
The Ektor Quadro LED Emergency Bunker is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating and IK08 impact resistance, this surface mount light features tunable white LED technology, allowing for a color temperature range of 3000K to 6500K. Ideal for areas requiring robust emergency solutions, it ensures high performance with a long LED lifetime of over 120,000 hours.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Bunker Light, IP65 Emergency LED Light, DALI Emergency LED Luminaire, Tunable White Emergency Light, Surface Mount Emergency Light
Technical Specifications
- Dimensions (H x L x W): 100mm x 300mm x 300mm
- Weight: 3 kg
Key Features
- IP65 rated polycarbonate body and diffuser for robust outdoor and indoor use
- Mechanical IK08 impact resistance
- Surface mount installation
- Inbuilt mains rated DALI switch supporting IEC62386-301, 302, 303
- Power factor of 0.95 with maximum wattage of 25W
- Tunable white LED with colour temperature range 3000K to 6500K
- High LED lifetime >120,000 hours with L90B10 rating at 43,000 hours
- DALI DT8 dimmable driver with wireless options available
- Inbuilt DALI-2 power monitoring (Device type 51)
- Low standby power consumption of 0.3W
- Microwave sensor option with adjustable hold time and detection area
- Maintained emergency mode with 90 minutes duration and 390 lumens output
- Supports emergency test and monitoring over DALI and IEC62386-104 wireless
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical and emergency lighting standards and proper integration with DALI control systems.
Applications
- Emergency lighting in commercial and industrial buildings
- Surface mount installations requiring IP65 rated emergency lighting
- Areas requiring tunable white LED lighting with DALI control
- Maintained emergency lighting systems with wireless and sensor options
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS/NZS CISPR 15
- AS/NZS 2293.3
- AS/NZS 4268
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifetime minimizes waste and replacement frequency
- DALI power monitoring enables energy management and optimization
- Low standby power reduces unnecessary energy use
Warranty Information
VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years). Standard commercial use warranty is 5 years return-to-base.
Available Now
The Ektor Quadro LED Emergency Bunker IP65 - PRO is available for immediate purchase, ideal for commercial and industrial emergency lighting applications requiring robust, tunable white LED solutions with advanced DALI control.
