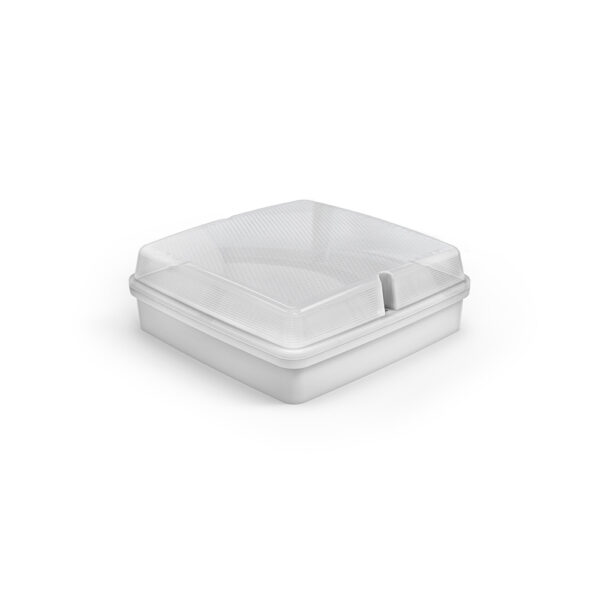

Ektor Quadro LED Emergency Bunker | IP65 Rated | Microwave Sensor | 130 lm/W Efficiency | by Ektor
The Ektor Quadro LED Emergency Bunker is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating and a microwave sensor for corridor function, it ensures optimal safety and efficiency. This surface-mounted light features a total system efficiency of 130 lm/W and a long LED lifetime of up to 43,000 hours, making it a smart choice for energy-conscious users.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Emergency Bunker Light, IP65 Emergency LED Light, Corridor Function Emergency Light, Surface Mount Emergency LED
Technical Specifications
- System Max Wattage: 20 W
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >80
- Colour Temperature: Tri-CCT (3000K, 4000K, 6000K)
- LED Lifetime: L90B10 at 25°C - up to 43,000 hours
- IP Rating: IP65
- IK Rating: IK08
- Driver Type: Fixed output, non-dimmable
- Sensor Type: Microwave with 10 m detection range
- Emergency Duration: 90 minutes maintained mode
- Operating Temperature Range: 0 to 40 °C
- Wiring: Re-wireable terminal block (3 or 4 pin depending on model)
- Dimensions (H x L x W): 80mm x 120mm x 300mm
- Weight: 1.5 kg
Key Features
- Total system efficiency of 130 lm/W
- IP65 rated and IK08 impact resistant polycarbonate body and diffuser
- Surface mount installation
- Tri-CCT colour temperature configuration with CRI >80
- Microwave sensor with 10 m detection range and corridor function
- Emergency maintained mode with 90 minutes duration
- Adjustable hold time, standby level, standby period, and detection sensitivity
- Fixed output driver included, non-dimmable
- Short Term Light Modulation (PstLM) of 0.09 and Stroboscopic Visibility Measure (SVM) of 0.012
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper sensor configuration.
Applications
- Emergency lighting in commercial and industrial buildings
- Surface mounted emergency lighting for corridors and bunkers
- Suitable for areas requiring IP65 rated lighting with sensor functionality
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Particular Requirements for Emergency Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS/NZS 61058.1 – Switches for Appliances
- AS/NZS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
- AS/NZS 4268 – EMC for Lighting Equipment
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Low flicker and stroboscopic effects improve visual comfort and safety
Warranty Information
Standard 5 years return-to-base warranty with optional VIP warranty providing 2 years onsite and 3 years return-to-base for registered users.
Available Now
The Ektor Quadro LED Emergency Bunker IP65 with Corridor Function Sensor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
