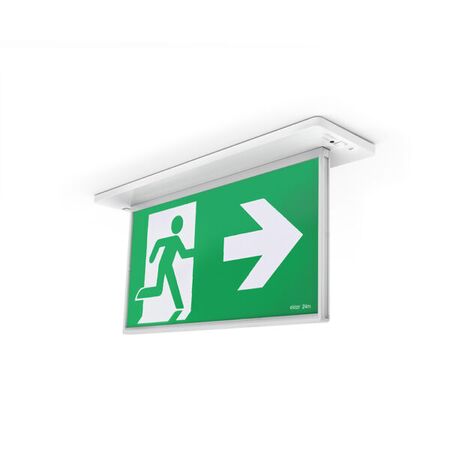

Ektor Razor Recessed EM Edgelite Exit | IP20 Rated | 90 Min Emergency Duration | 16m Viewing Distance | by Ektor
The Ektor Razor Recessed EM Edgelite Exit is designed for effective emergency exit signage in commercial and public buildings. With an IP20 rating, polycarbonate body, and PMMA diffuser, it ensures durability and visibility. This maintained emergency light offers a 90-minute duration and a viewing distance of 16 meters, making it ideal for recessed installations in walls or ceilings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Recessed Emergency Exit Sign, Wireless Emergency Exit Light, Edgelite Exit Sign, Emergency Exit LED Sign
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Maximum Wattage: 3.7 W
- Standby Power: 1.7 W
- Driver Type: Wireless IEC62386-104 with DT1
- Emergency Mode: Maintained
- Emergency Duration: 90 minutes
- Emergency Output Power: 1000 mW
- Viewing Distance: 16 meters
- Decal Size: 200 x 100 mm
- Operating Temperature Range: 0 to 40 °C
- Dimmable: No
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Product Design Life: 12 years
- Emergency Light Source Life: 18 years
- Dimensions (H x L x W): 100mm x 50mm x 200mm
- Weight: 1.5 kg
Key Features
- Recessed installation type with polycarbonate body and PMMA diffuser
- Maintained emergency mode with 90 minutes emergency duration
- Wireless IEC62386-104 (DT1) monitored emergency control
- Maximum wattage 3.7W with standby power 1.7W
- Viewing distance of 16 meters
- Supports wireless test and monitoring over IEC62386-104
- Integrated driver included, non-dimmable
- Operating temperature range 0 to 40 °C
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with Australian standards and proper emergency system integration.
Applications
- Commercial buildings emergency exit signage
- Public and private facilities requiring emergency lighting
- Recessed installation in walls or ceilings for emergency exit indication
Standards & Compliance
- AS/NZS 2293 – Emergency Escape Lighting and Exit Signs
- AS/NZS 60598 – Electrical Equipment
- AS/NZS 61347 – Lamp Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
- Low power consumption with 3.7W maximum wattage and 1.7W standby power
- Long product design life of 12 years reduces waste and replacement frequency
- Wireless monitoring reduces need for manual testing, saving resources
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Razor Recessed EM Edgelite Exit - 16M - PRO is available for immediate purchase, ideal for commercial and public building emergency exit signage.
