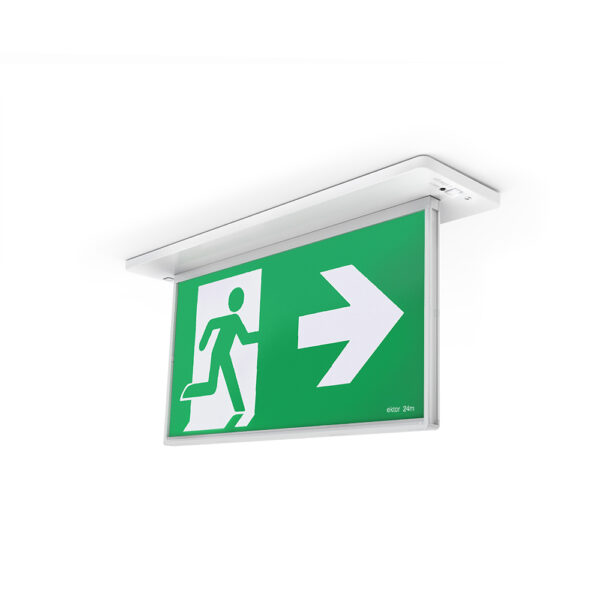

Ektor Razor Recessed Emergency Exit | IP20 Rated | 90 Min Duration | Wireless DALI Control | by Ektor

BRAND: Ektor
SKU: EV-RAZOR-24M-PRO-B
$456.20 List price: $552.10
+
The Ektor Razor Recessed Emergency Exit is designed for reliable emergency signage, featuring an IP20 rating and a maintained emergency mode with a 90-minute duration. Ideal for commercial and industrial applications, this exit sign ensures safety compliance with its wireless DALI DT1 control and a viewing distance of 24 meters, making it a perfect choice for public facilities and office environments.

Alternatively Known As: Emergency Exit Sign, Recessed Exit Sign, LED Emergency Exit Light, Wireless Emergency Exit Sign

Technical Specifications
  • IP Rating: IP20
  • Body Material: Polycarbonate
  • Diffuser Material: PMMA
  • Installation Type: Recessed
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Frequency: 50 Hz
  • Maximum Wattage: 3.7 W
  • Standby Power: 1.7 W
  • Driver Type: Wireless (IEC62386-104) with DT1
  • Emergency Mode: Maintained
  • Emergency Duration: 90 minutes
  • Emergency Output Power: 1350 mW
  • Viewing Distance: 24 meters
  • Decal Size: 300 x 150 mm
  • Operating Temperature Range: 0 to 40 °C
  • Dimmable: No
  • Flex & Plug Length: 1200 mm
  • Wiring Type: Re-wireable Flex & Plug (2 pin)
  • Dimensions (H x L x W): 150mm x 50mm x 300mm
  • Weight: 1.2 kg
Key Features
  • Recessed installation with polycarbonate body and PMMA diffuser
  • Maintained emergency mode with 90 minutes duration
  • Wireless DALI DT1 emergency control with IEC62386-104 compliance
  • IP20 rated for indoor use
  • Integrated driver included, non-dimmable
  • Viewing distance of 24 meters
  • Low standby power consumption of 1.7 W
  • Maximum wattage of 3.7 W
  • Operating temperature range 0 to 40 °C
Professional Installation Requirements
  • Professional installation by a qualified electrician is required to ensure compliance with Australian standards and optimal emergency functionality.
Applications
  • Commercial buildings emergency exit signage
  • Public facilities requiring emergency exit illumination
  • Industrial and office environments for safety compliance
Standards & Compliance
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
Environmental Benefits
  • Long product design life of 12 years reduces waste and replacement frequency
  • Low standby power consumption minimizes energy use
  • LED technology provides energy-efficient emergency lighting
Warranty Information

8 years return to base warranty for commercial use.

Available Now

The Ektor Razor Recessed Emergency Exit 24M Black Pro is available for immediate purchase, ideal for commercial and industrial emergency exit signage applications.
