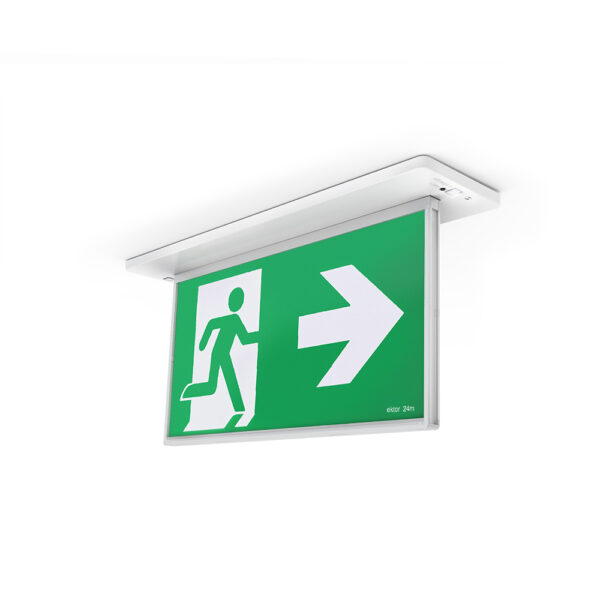

Ektor Razor Recessed Emergency Exit | Maintained Mode | 90 Minutes Duration | Wireless Monitoring | by Ektor
The Ektor Razor Recessed Emergency Exit is designed for reliable emergency signage in commercial and public buildings. With a maintained emergency mode providing 90 minutes of illumination and a viewing distance of up to 24 meters, this exit sign ensures safety during evacuations. Its wireless monitoring capability and durable polycarbonate body make it a smart choice for any workplace.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Recessed Exit Light, Maintained Emergency Exit Sign, Wireless Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Maximum Wattage: 3.7 W
- Standby Power: 1.7 W
- Emergency Duration: 90 minutes
- Emergency Output Power: 1000 mW
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Driver Type: Wireless IEC62386-104 with DT1
- Installation Type: Recessed
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Operating Temperature Range: 0 to 40 °C
- Dimmable: No
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Emergency Classification: C0:C40, C90:C32
- Product Design Life: 12 years
- Daily Use: 24 hours
- Dimensions (H x L x W): 150mm x 80mm x 300mm
- Weight: 1.2 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- Wireless IEC62386-104 (DT1) monitored emergency control
- Polycarbonate body with PMMA diffuser
- Recessed installation type
- Maximum wattage 3.7 W with standby power 1.7 W
- Viewing distance up to 24 meters
- Integrated driver included
- Operating temperature range 0 to 40 °C
- Supports wireless test and monitoring compliant with IEC62386-202
- Emergency classification C0:C40, C90:C32
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with Australian standards and proper emergency lighting functionality.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring maintained emergency lighting
- Workplaces and offices for emergency evacuation guidance
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Long LED life reduces waste and replacement frequency
- Low standby power consumption minimizes energy use
- Wireless monitoring reduces maintenance visits and associated emissions
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Razor Recessed Emergency Exit 24M Pro is available for immediate purchase, ideal for commercial and public building emergency exit signage.
