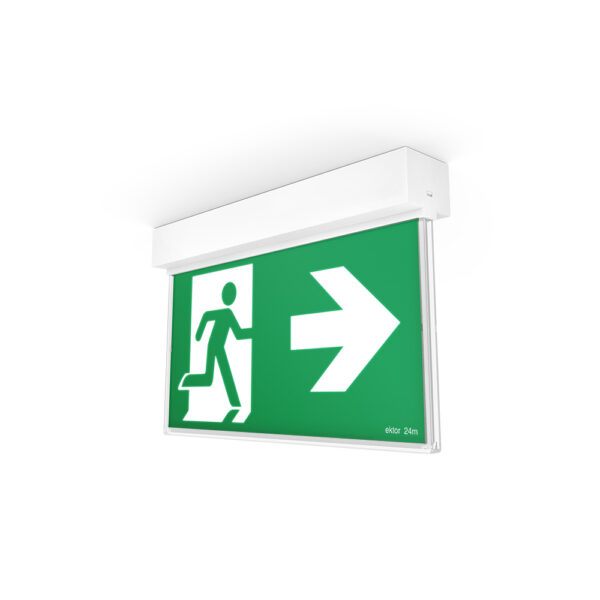

Ektor Razor Core Surface-mount Exit Light | IP20 Rated | Maintained Emergency Mode | 90 Minutes Duration | by Ektor
The Ektor Razor Core Surface-mount Exit Light is designed for reliable emergency exit signage in commercial and public spaces. With an IP20 rating and a maintained emergency mode providing 90 minutes of illumination, it ensures safety during power outages. Ideal for corridors and exit routes, this light features a polycarbonate body and PMMA diffuser for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Light, Surface Mount Exit Sign, Maintained Emergency Exit Light, LED Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.6 W
- Standby Power: 1.7 W (black), 1.9 W (white)
- Working Temperature Range: 0 to 40 °C
- Driver Type: Fixed output, integrated
- Dimmable: No
- Wiring Type: Re-wireable terminal block (2 pin)
- Emergency Mode: Maintained
- Emergency Classification: C0:E6.3, C90:E20
- Emergency Output Power: 1000 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Replacement Battery Code: 13972
- Product Design Life: 6 years
- Dimensions (H x L x W): 150mm x 80mm x 300mm
- Weight: 1.2 kg
Key Features
- Surface mount installation with polycarbonate body and PMMA diffuser
- Maintained emergency mode with 90 minutes duration
- Viewing distance of 24 meters
- Fixed output integrated driver included
- Non-dimmable with re-wireable terminal block (2 pin)
- Emergency output power of 1000 mW
- Product design life of 6 years
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring maintained emergency lighting
- Surface mount installation in corridors and exit routes
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General requirements
- AS 60598.2.22 – Emergency lighting luminaires
- AS/NZS 61347.1 – Lamp control gear General and safety requirements
- AS/NZS 61347.2.13 – Particular requirements for emergency lighting control gear
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
- AS/NZS 2293.3 – Emergency escape lighting and exit signs
Environmental Benefits
- Low power consumption with maximum wattage of 2.6W
- Long product design life reduces waste and replacement frequency
- Energy-efficient LED technology
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Razor Core Surface-mount Exit Light 24M is available for immediate purchase, ideal for commercial and public building emergency exit lighting applications.
