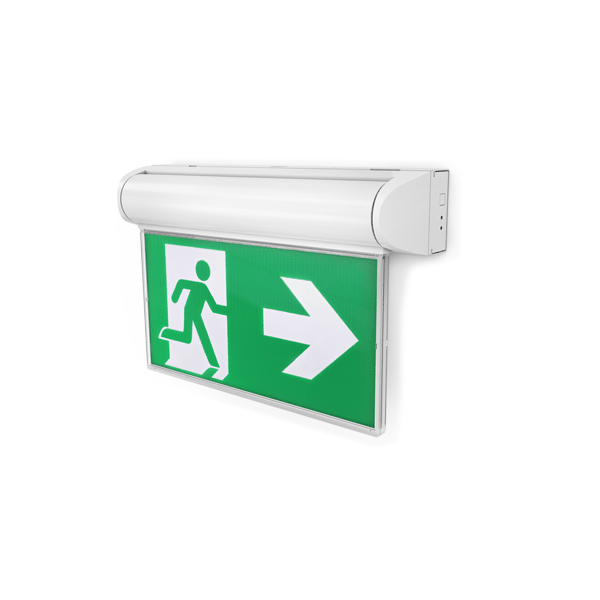

Ektor Razor PRO Swingblade Emergency Exit | IP20 Rated | Adjustable Design | 90 Min Duration | by Ektor
The Ektor Razor PRO Swingblade Emergency Exit is designed for reliable emergency signage in commercial and industrial settings. With an adjustable swingblade design and a viewing distance of 24 meters, this surface-mounted light ensures visibility during emergencies. Built with a polycarbonate body and PMMA diffuser, it features a maintained emergency mode lasting 90 minutes, making it ideal for compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Swingblade Exit Sign, Surface Mounted Emergency Exit Light, DALI Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Maximum Wattage: 3.7 W
- Input Frequency: 50 Hz
- Standby Power: 1.7 W
- Emergency Output Power: 750 mW
- Emergency Duration: 90 minutes
- Emergency Classification: C0:E6.3, C90:E16
- Driver Type: DALI DT1 Emergency with wireless IEC62386-104 support
- Wiring Type: Re-wireable terminal block (5 pin)
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Working Temperature Range: 0 to 40 °C
- Decal Size: 300 x 150 mm
- Dimmable: No
- Dimensions (H x L x W): 200mm x 100mm x 350mm
- Weight: 1.5 kg
Key Features
- Adjustable swingblade design for versatile installation
- Surface mount installation with polycarbonate body and PMMA diffuser
- Maintained emergency mode with 90 minutes duration
- DALI DT1 and wireless IEC62386-104 emergency test and monitoring support
- Viewing distance of 24 meters
- Low standby power consumption of 1.7 W
- Integrated driver included, non-dimmable
- Product design life of 12 years with LED light source life up to 31 years
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with emergency lighting standards and proper DALI system integration.
Applications
- Emergency exit signage for commercial buildings
- Surface mounted emergency lighting in public and industrial spaces
- Maintained emergency lighting systems requiring DALI monitoring
Standards & Compliance
- AS/NZS 60598.1 – General requirements for luminaires
- AS 60598.2.22 – Emergency lighting luminaires
- AS/NZS 61347.1 – Lamp control gear general and safety requirements
- AS/NZS 61347.2.13 – Particular requirements for emergency lighting control gear
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment
- AS/NZS 2293.3 – Emergency escape lighting and exit signs
Environmental Benefits
- Long product design life reduces waste and replacement frequency
- Low standby power consumption minimizes energy use
- LED technology provides energy-efficient emergency lighting
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Razor PRO Swingblade Surface Mounted Emergency Exit 24M - PRO - Black is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
