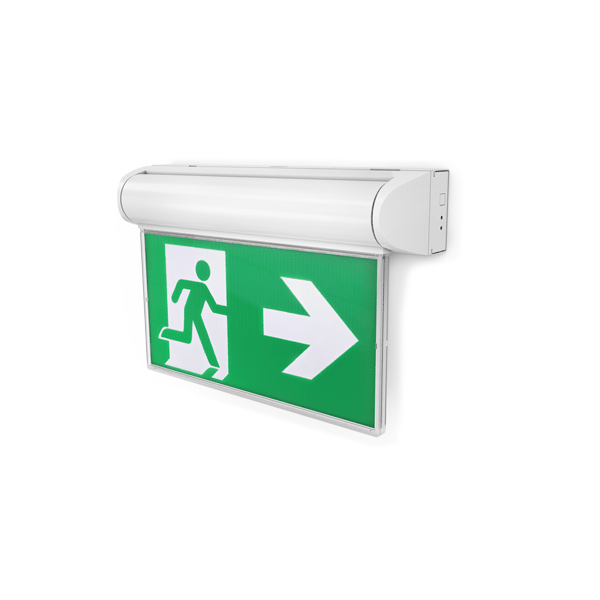

Ektor Razor Swing Surface Mounted Emergency Exit | IP20 Rated | Maintained Mode | 90 Min Duration | by Ektor
The Ektor Razor Swing Surface Mounted Emergency Exit is designed for reliable emergency signage in commercial and industrial settings. With an IP20 rating, polycarbonate body, and PMMA diffuser, it ensures visibility up to 24 meters. This maintained emergency exit light features a 90-minute duration, making it ideal for public spaces that require consistent emergency lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Emergency Exit Light, Maintained Emergency Exit Sign, DALI Emergency Exit Sign, Surface Mounted Exit Sign
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 3.7 W
- Standby Power: 1.7 W
- Driver Type: DALI DT1 Emergency with integrated driver
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Mode: Maintained
- Emergency Classification: C0:E6.3, C90:E16
- Emergency Output Power: 750 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Operating Temperature Range: 0 to 40 °C
- Emergency Light Source Life: 31 years 6 months
- Product Design Life: 12 years
- Dimensions (H x L x W): 200mm x 100mm x 350mm
- Weight: 1.5 kg
Key Features
- Surface mount installation with adjustable fitting
- Polycarbonate body with PMMA diffuser
- Maintained emergency mode with 90 minutes duration
- DALI DT1 Emergency driver included with integrated driver
- Supports wireless test and monitoring over IEC62386-104
- Viewing distance of 24 meters
- Emergency output power of 750 mW
- Standby power consumption of 1.7 W
- Maximum wattage 3.7 W
- Operating temperature range 0 to 40 °C
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with emergency lighting standards and proper DALI system integration.
Applications
- Commercial buildings emergency exit signage
- Industrial facilities emergency lighting
- Public spaces requiring maintained emergency exit signs
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 3.7 W maximum wattage
- Long product design life of 12 years reduces waste
- LED technology for energy-efficient emergency lighting
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Razor Swing Surface Mounted Emergency Exit 24M - PRO is available for immediate purchase, ideal for commercial and industrial emergency exit signage applications.
