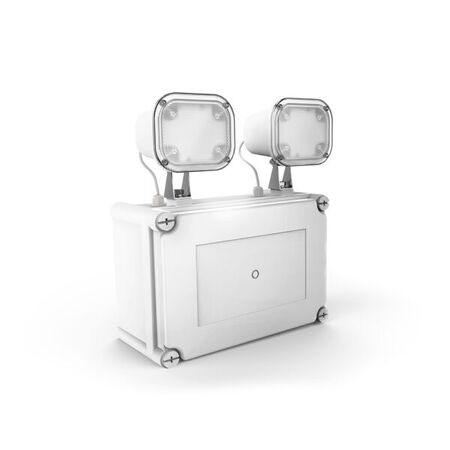

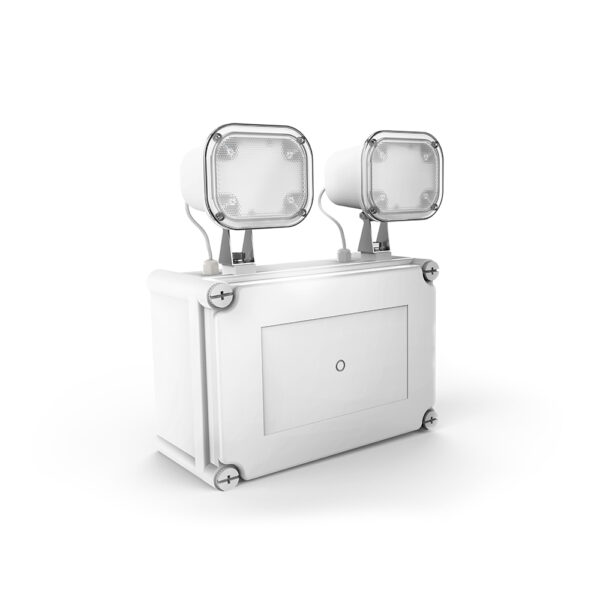

Ektor Twinspot Emergency IP65 Luminaire | Adjustable Design | DALI Monitored | 570 Lumen Output | by Ektor
The Ektor Twinspot Emergency IP65 Luminaire is designed for commercial and industrial emergency lighting, featuring an adjustable twin spot design and DALI monitored control. With an impressive 570 lumens output and a robust IP65 rating, this luminaire ensures reliable performance in critical situations, making it ideal for areas requiring effective emergency illumination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Twin Spot Light, IP65 Emergency Luminaire, Adjustable Emergency Spot Light, DALI Emergency Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 3 W
- Input Current: 0.1 A
- Standby Power: 0.25 W
- Driver Type: DALI DT1 Emergency
- Emergency Mode: Non-Maintained
- Emergency Output Power: 5500 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 570 lm
- Emergency Control: DALI Monitored (DT1)
- Product Design Life: 12 years
- Operating Temperature Range: 0 to 40 °C
- Dimensions (H x L x W): 150mm x 200mm x 250mm
- Weight: 1.5 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK10 impact resistance for robust mechanical protection
- Adjustable twin spot design for directional emergency lighting
- DALI DT1 emergency driver included with DALI monitored emergency control
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 570 lumens
- Surface mount installation with polycarbonate body and diffuser
- Standby power consumption of 0.25 W
- Operating temperature range from 0 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards and proper DALI system integration.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP65 rated emergency luminaires
- Areas requiring adjustable emergency lighting with DALI monitoring
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during emergency operation
- Long product design life of 12 years reduces waste and replacement frequency
- DALI monitoring supports efficient maintenance and reduces unnecessary battery replacements
Warranty Information
8 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Twinspot Emergency IP65 Luminaire - PRO is available for immediate purchase, ideal for commercial and industrial emergency lighting applications requiring robust, adjustable, and monitored emergency illumination.
