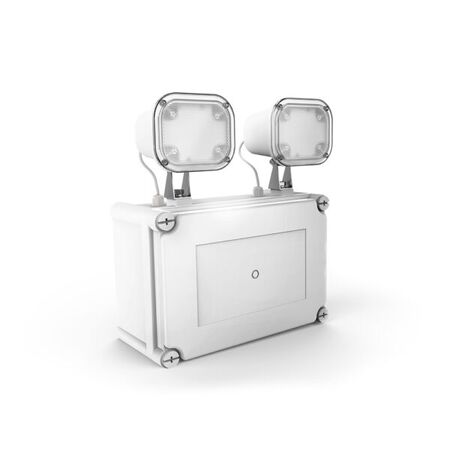

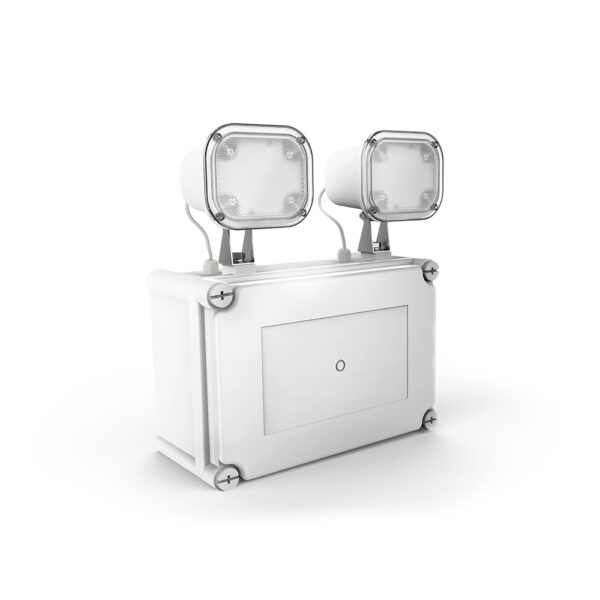

Ektor Twinspot Emergency IP65 Luminaire | Adjustable Design | IK10 Rated | 570 Lumen Output | by Ektor
The Ektor Twinspot Emergency IP65 Luminaire is designed for reliable emergency lighting in commercial and industrial settings. With an adjustable twin spot design, IK10 impact resistance, and a powerful 570 lumen output, this luminaire ensures safety during emergencies. Built to last with a polycarbonate body, it’s perfect for surface mount installations in escape routes and safety lighting applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Twinspot Light, IP65 Emergency Luminaire, Adjustable Emergency Spot Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Maximum Wattage: 3 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Input Current: 0.1 A
- Standby Power: 0.25 W
- Driver Type: DALI DT1 Emergency
- Emergency Mode: Non-Maintained
- Emergency Output Power: 5500 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 570 lm
- Body Material: Polycarbonate
- Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Operating Temperature Range: 0 to 40 °C
- Wiring Type: Re-wireable terminal block (6 pin)
- Replacement Battery Code: 01303
- DALI Monitored Emergency Test and Monitoring compliant with IEC62386-202
- Dimensions (H x L x W): 150mm x 200mm x 250mm
- Weight: 1.2 kg
Key Features
- IP65 rated for dust and water ingress protection
- IK10 rated for high impact resistance
- Adjustable twin spot design
- DALI DT1 Emergency driver included with DALI monitored control
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 570 lumens
- Polycarbonate body and diffuser for durability
- Surface mount installation
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP65 rated luminaires
- Emergency escape routes and safety lighting
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during emergency operation
- Long product design life of 12 years reduces waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Twinspot Emergency IP65 Luminaire - Black - PRO is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
