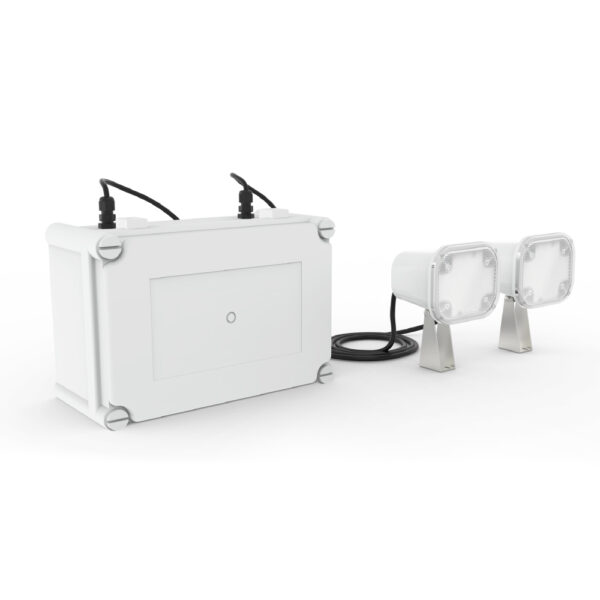

Ektor Twinspot High-Powered Emergency Luminaire | IP65 Rated | 980 lm Output | Adjustable Fitting | by Ektor
The Ektor Twinspot High-Powered Emergency Luminaire is designed for commercial and industrial applications, featuring an impressive 980 lm emergency output and an IP65 rating for dust and water protection. With a durable white polycarbonate body and adjustable fitting, this luminaire ensures reliable performance in emergency situations, making it ideal for surface mount installations requiring DALI monitored systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Twinspot Luminaire, IP65 Emergency Light, DALI Emergency Luminaire, High-Powered Emergency Spot Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK08
- Maximum Wattage: 3.7 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Standby Power: 1.85 W
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 980 lm
- Driver Type: DALI DT1 Emergency, included
- Emergency Mode: Non-Maintained
- Operating Temperature Range: -40 to 40 °C
- Wiring: Re-wireable terminal block (6 pin)
- Replacement Battery Code: 01303
- Product Design Life: 12 years
- Dimensions (H x L x W): 150mm x 250mm x 200mm
- Weight: 1.2 kg
Key Features
- High-powered emergency luminaire with 980 lm emergency output
- IP65 rated for dust and water ingress protection
- IK08 rated for impact resistance
- Adjustable fitting for directional lighting
- DALI DT1 emergency driver included with monitoring and testing capabilities
- Non-maintained emergency mode with 90 minutes duration
- Surface mount installation with re-wireable 6 pin terminal block
- White polycarbonate body and diffuser for durability
- Wide operating temperature range from -40 to 40 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical and emergency lighting standards and proper DALI system integration.
Applications
- Commercial and industrial emergency lighting
- Surface mount installations requiring IP65 rated emergency luminaires
- Areas requiring DALI monitored emergency lighting systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS/NZS 61347.2.7 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Energy-efficient LED technology reduces power consumption during emergency operation
- Long product design life of 12 years minimizes waste and replacement frequency
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Ektor Twinspot High-Powered Emergency IP65 Luminaire with Remote Driver - PRO is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
