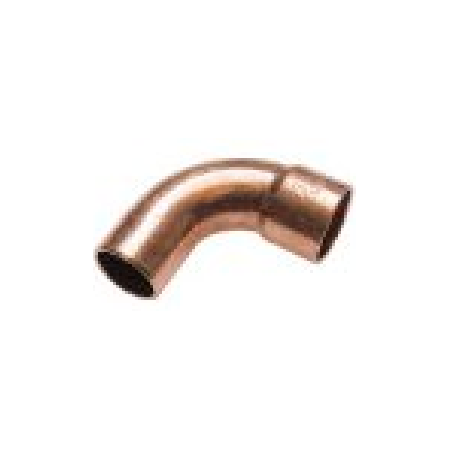

Elbow 5/8 Degree M XHP | CuFe2P Copper Alloy | 130 Bar Pressure Rating | 150°C Temperature Rating | by Aspen Pumps
The Elbow 5/8 Degree M XHP is designed for high-pressure refrigeration systems, made from durable CuFe2P copper alloy for exceptional corrosion resistance. With a pressure rating of 130 bar and a temperature tolerance of up to 150°C, this fitting is perfect for industrial and commercial HVAC applications. Certified to TüV standards, it ensures quality and safety in every installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Elbow 5/8 Degree M XHP | CuFe2P Copper Alloy | 130 Bar Pressure Rating | 150°C Temperature Rating | by Aspen Pumps
Brand: Aspen Pumps
SKU: 122-129001A-58
Alternatively Known As: 5/8 inch Copper Elbow Fitting, High Pressure Copper Elbow, Refrigeration Copper Elbow 5/8 inch
Technical Specifications
- Material: CuFe2P Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Connection Type: 90° Elbow Male x Female
- Manufactured in the EU
- Dimensions (H x L x W): 40mm x 50mm x 40mm
- Weight: 0.15 kg
Key Features
- Made from CuFe2P copper iron alloy for high corrosion resistance
- Certified to TüV standards ensuring quality and safety
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method for secure connections
- Magnetic identification for easy verification
Professional Installation Requirements
- Installation by a qualified HVAC or plumbing professional is recommended to ensure proper brazing and system integrity.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure plumbing installations up to 130 bar
- Industrial and commercial HVAC systems requiring durable copper fittings
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Durable copper alloy reduces need for frequent replacements, minimizing waste
- Supports environmentally friendly R744 refrigerant systems
Warranty Information
Backed by Aspen Pumps standard warranty covering manufacturing defects.
Available Now
The Aspen Pumps Elbow 5/8 Degree M XHP is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
