Trade Discount 17%

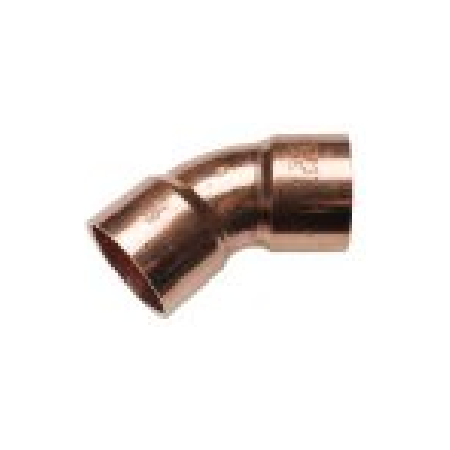

Elbow 5/8 ID x 5/8 ID 45 Degree Copper Fitting | High Pressure | R744 Compatible | by Aspen Pumps
The Elbow 5/8 ID x 5/8 ID 45 Degree Copper Fitting is designed for high pressure refrigeration systems, specifically for R744 refrigerant. Made from durable CuFe2P copper iron alloy, it offers exceptional corrosion resistance and is certified to ASTM B 280 and AS5149.2 standards. Ideal for industrial and commercial HVAC applications, this fitting ensures reliable performance at pressures up to 130 bar and temperatures up to 150°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Elbow 5/8 ID x 5/8 ID 45 Degree Copper Fitting | High Pressure | R744 Compatible | by Aspen Pumps
Brand: Aspen Pumps
SKU: 125-129041-58
Alternatively Known As: 45 Degree Copper Elbow, High Pressure Copper Fitting, R744 Refrigeration Elbow, CuFe2P Elbow Fitting
Technical Specifications
- Material: CuFe2P Copper Iron Alloy
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification for easy verification
- Certified to TüV standards
- Dimensions (H x L x W): 20mm x 30mm x 20mm
- Weight: 0.1 kg
Key Features
- Made from CuFe2P copper iron alloy for high corrosion resistance
- Certified to ASTM B 280 and AS5149.2 standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Certified to TüV for quality assurance
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician experienced with high pressure refrigeration systems and brazed copper fittings.
Applications
- High pressure refrigeration systems using R744 (CO2) refrigerant
- Industrial and commercial HVAC systems requiring durable copper fittings
- Systems operating at pressures up to 130 bar and temperatures up to 150°C
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports use in environmentally friendly R744 (CO2) refrigerant systems
- Durable materials reduce need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps Elbow 5/8 ID x 5/8 ID Degree 45 XHP is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
