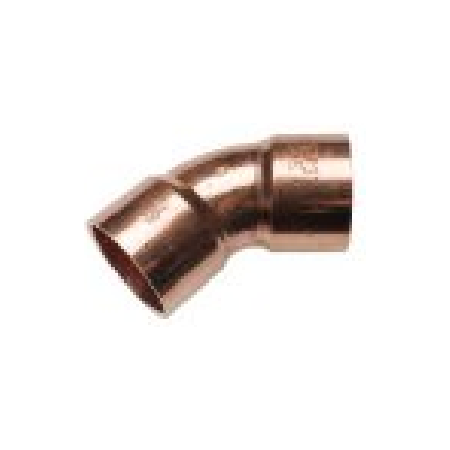

Elbow ID 1/2 45 Degree Copper Fitting | 130 Bar Pressure Rating | Up to 150°C Temperature | by Aspen Pumps
The Elbow ID 1/2 45 Degree Copper Fitting is designed for high pressure refrigeration systems, featuring a robust 130 bar pressure rating and a temperature tolerance of up to 150°C. Made from ANS C19400 Copper Iron Alloy, it offers exceptional corrosion resistance and is compliant with ASTM B 280 and AS5149.2 standards, making it ideal for HVAC and industrial piping applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Elbow ID 1/2 45 Degree Copper Fitting | 130 Bar Pressure Rating | Up to 150°C Temperature | by Aspen Pumps
Brand: Aspen Pumps
SKU: 125-129041-12
Alternatively Known As: 45 Degree Copper Elbow, High Pressure Copper Fitting, Sanha RefHP 45° Elbow
Technical Specifications
- Material: ANS C19400 Copper Iron Alloy (CuFe2P)
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Joining Method: Traditional Brazed Joining
- Magnetic Identification for easy verification
- Dimensions (H x L x W): 30mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Made from ANS C19400 Copper Iron Alloy for high corrosion resistance
- Certified to TüV standards
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining with magnetic identification
- Compliant with ASTM B 280 and AS5149.2 standards
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in high pressure refrigeration systems and brazing techniques.
Applications
- High pressure refrigeration systems using R744 (CO2)
- Industrial piping requiring high corrosion resistance
- HVAC and refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- High durability reduces need for frequent replacements, minimizing waste
- Compatible with environmentally friendly refrigerant R744 (CO2)
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps Elbow ID 1/2 45 Degree XHP is available for immediate purchase, ideal for high pressure refrigeration and industrial piping applications.
