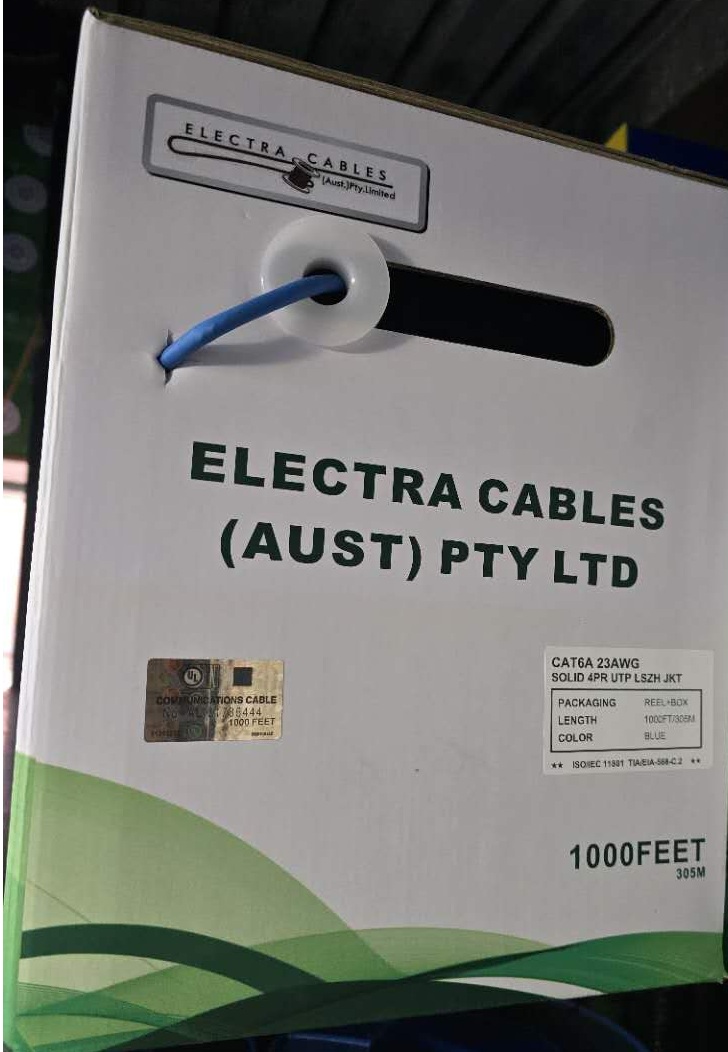

Electa Cat6A 10G STP Solid Cable Roll | 305m Length | Blue Color | by Electa

SKU: CAT6A-BOXBLU
$271.04 List price: $359.37
+
Electa Cat6A 10G STP Solid Cable Roll is perfect for high-speed networking, offering a robust 305m length in a vibrant blue color. Designed for reliable data transmission, this cable is ideal for both residential and commercial installations, ensuring optimal performance for your network needs.

Product Name/Title: Electa Cat6A 10G STP Solid Cable Roll | 305m Length | Blue Color | by Electa

Brand: Electra Cables

SKU: CAT6A-BOXBLU

Alternatively Known As: Cat6A Shielded Cable, Cat6A 10G Network Cable, Cat6A STP Solid Cable, 10G Ethernet Cable, Cat6A LAN Cable, Cat6A Blue Cable Roll

Technical Specifications
  • Category: Cat6A (Augmented Category 6)
  • Type: Shielded Twisted Pair (STP)
  • Conductor: Solid bare copper
  • Gauge: 23 AWG
  • Length: 305 metres (1000 feet)
  • Jacket: LSZH (Low Smoke Zero Halogen)
  • Colour: Blue
  • Bandwidth: 500 MHz
  • Data Rate: Up to 10 Gbps (10GBASE-T)
  • Compliance: ANSI/TIA-568-C.2, ISO/IEC 11801 Class EA
  • Packaging: Easy-pull box
  • Dimensions (H x L x W): 400mm x 400mm x 400mm
  • Weight: 13.5 kg
Key Features
  • Supports 10 Gigabit Ethernet (10GBASE-T) up to 100 metres
  • Shielded Twisted Pair (STP) construction for superior noise immunity
  • Solid bare copper conductors for maximum performance
  • 305 metre easy-pull box for convenient installation
  • Blue outer sheath for easy identification
  • Complies with ANSI/TIA-568-C.2 and ISO/IEC 11801 Class EA standards
  • Low smoke zero halogen (LSZH) jacket for enhanced safety
Professional Installation Requirements
  • Installation by a qualified data cabling technician is recommended to ensure compliance with network standards and optimal performance.
Applications
  • Data centres
  • Commercial buildings
  • Office networks
  • High-speed LAN environments
  • Server rooms
  • Industrial network installations
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Low smoke zero halogen (LSZH) jacket reduces toxic emissions in case of fire
  • Durable construction minimizes need for frequent replacement
  • Supports energy-efficient high-speed data transmission
Warranty Information

25-year performance warranty when installed by certified professionals.

Available Now

The Electra Cat6A 10G STP Solid Cable Roll 305m in Blue is available for immediate purchase. Ideal for high-speed data networks in commercial, industrial, and office environments.
