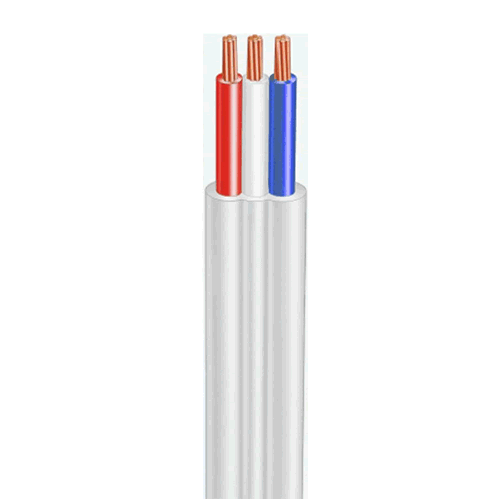

Electra 2.5mm 2 Core & Earth Flat Cable | 100 Metre Drum | PVC Insulation & Sheath | 20A Current Rating | @M of 100 | by Electra Cables
Electra 2.5mm 2 Core & Earth Flat Cable is designed for reliable power transmission in residential and commercial fixed wiring applications. With durable PVC insulation and sheath, this cable supports a maximum current rating of 20A, ensuring safety and compliance with Australian electrical standards. Supplied in a convenient 100 metre drum, it's perfect for lighting and power circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electra 2.5mm 2 Core & Earth Flat Cable | 100 Metre Drum | PVC Insulation & Sheath | 20A Current Rating | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XSRF3025V-100WH
Alternatively Known As: 2.5mm twin and earth cable, 2.5mm flat TPS cable, 2.5mm electrical cable, 2.5mm 2 core + earth cable
Technical Specifications
- Conductor size: 2.5mm²
- Number of cores: 2 + earth
- Conductor material: Plain annealed copper
- Insulation: PVC V-90
- Sheath: PVC 3V-90
- Voltage rating: 450/750V
- Maximum current rating: 20A (refer to AS/NZS 3008 for installation conditions)
- Drum length: 100 metres
- Colour: White sheath
- Dimensions (H x L x W): 5mm x 100000mm x 12mm
- Weight: 10.5 kg
Key Features
- 2 core and earth flat cable design for easy installation
- 2.5mm² copper conductors for reliable power transmission
- Supplied in a 100 metre drum for convenience
- PVC insulation and sheath for durability and safety
- Complies with Australian electrical standards
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial fixed wiring
- Lighting and power circuits
- Suitable for use in conduit and protected installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.2 – Electric cables for working voltages up to and including 450/750V
Environmental Benefits
- Long-lasting cable reduces replacement frequency and waste
- PVC insulation is lead-free and compliant with RoHS directives
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Electra 2.5mm 2 Core & Earth Flat Cable 100 Metre Drum is available for immediate purchase. Ideal for residential and commercial fixed wiring applications.
