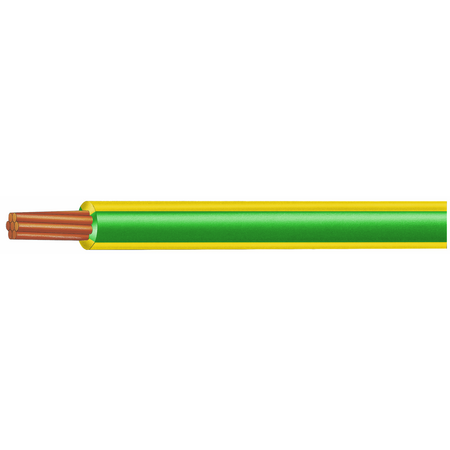

Electra Building Wire 120mm Green/Yellow | Stranded Copper | PVC Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
Electra Building Wire 120mm Green/Yellow is designed for high-capacity electrical installations, featuring a stranded copper conductor and durable PVC insulation. Ideal for residential, commercial, and industrial applications, this wire complies with Australian standards for safety and reliability, ensuring effective earthing and bonding in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electra Building Wire 120mm Green/Yellow | Stranded Copper | PVC Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR11200-100G/Y
Alternatively Known As: 120mm earth cable, 120mm green/yellow building wire, 120mm earthing wire, 120mm earth conductor, Electra 120mm cable
Technical Specifications
- Conductor: Stranded copper
- Cross-sectional area: 120mm²
- Insulation: PVC, Green/Yellow
- Voltage rating: 0.6/1kV
- Operating temperature: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Flame retardant and UV resistant
- Dimensions (H x L x W): 20mm x 100000mm x 20mm
- Weight: 13.5 kg
Key Features
- 120mm² cross-sectional area for high current capacity
- Green/Yellow insulation for earth/ground identification
- Manufactured to Australian standards for safety and reliability
- Flexible stranded copper conductor for easy installation
- PVC insulation for durability and protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential and commercial electrical installations
- Industrial power distribution
- Earthing and bonding applications
- Suitable for use in switchboards, control panels, and general wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- Long-lasting, durable construction reduces replacement frequency and waste
- PVC insulation is lead-free and compliant with RoHS directives
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Electra Building Wire 120mm Green/Yellow is available for immediate purchase. Ideal for high-capacity earthing and electrical installations in residential, commercial, and industrial settings.
