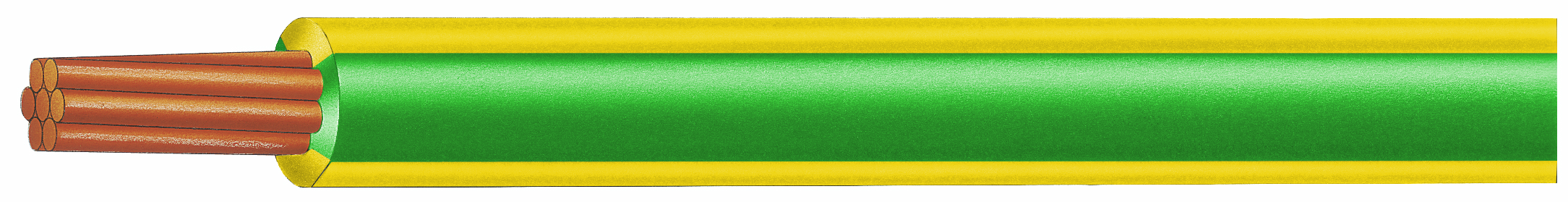

Electra Building Wire 50mm Green/Yellow | High Conductivity Copper | PVC Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
Electra Building Wire 50mm Green/Yellow is designed for high current capacity electrical installations, featuring a 50mm² cross-sectional area and durable PVC insulation. Ideal for residential, commercial, and industrial applications, this wire ensures reliable earthing and grounding, complying with AS/NZS standards for safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electra Building Wire 50mm Green/Yellow | High Conductivity Copper | PVC Insulation | 0.6/1kV Rated | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR1500-100G/Y
Alternatively Known As: 50mm earth cable, 50mm green/yellow building wire, 50mm earthing wire, 50mm earth conductor, Electra 50mm cable
Technical Specifications
- Conductor: Plain annealed high conductivity copper
- Cross-sectional area: 50mm²
- Insulation: PVC V-90HT, Green/Yellow
- Voltage rating: 0.6/1kV
- Maximum conductor temperature: 90°C
- Complies with AS/NZS 5000.1
- Suitable for fixed wiring in dry or damp situations
- Dimensions (H x L x W): 15mm x 100000mm x 15mm
- Weight: 6.5 kg
Key Features
- 50mm² cross-sectional area for high current carrying capacity
- Green/Yellow insulation for easy identification as earth/ground wire
- Manufactured with high conductivity copper
- PVC insulation for durability and safety
- Suitable for fixed wiring in buildings
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- Residential and commercial electrical installations
- Earthing and grounding systems
- Industrial switchboards and distribution boards
- General wiring in buildings requiring high current capacity
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- Durable construction reduces need for frequent replacement
- High conductivity copper ensures energy efficiency
- PVC insulation is lead-free and compliant with RoHS standards
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Electra Building Wire 50mm Green/Yellow is available for immediate purchase. Ideal for use in residential, commercial, and industrial electrical installations requiring reliable earthing and high current capacity.
