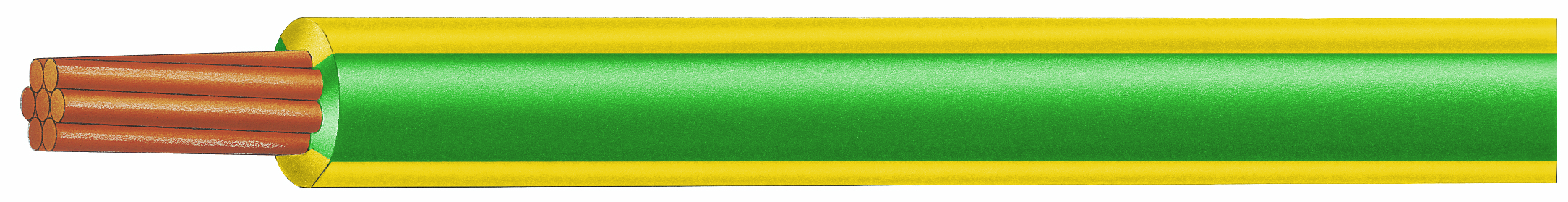

Electra Building Wire 95mm Green/Yellow | Stranded Copper | PVC V-90HT Insulation | 0.6/1kV Voltage Rating | @M of 100 | by Electra Cables
Electra Building Wire 95mm Green/Yellow is designed for high-capacity earthing and electrical installations. Featuring a stranded copper conductor and PVC V-90HT insulation, it ensures flexibility and resistance to heat and chemicals. Ideal for residential, commercial, and industrial applications, this wire complies with AS/NZS standards for safe and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electra Building Wire 95mm Green/Yellow | Stranded Copper | PVC V-90HT Insulation | 0.6/1kV Voltage Rating | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR1950-100G/Y
Alternatively Known As: 95mm earth cable, 95mm green yellow wire, 95mm earthing wire, 95mm building wire, Electra 95mm cable
Technical Specifications
- Conductor: Stranded copper
- Cross-sectional area: 95mm²
- Insulation: PVC V-90HT (heat and chemical resistant)
- Colour: Green/Yellow (earth/ground identification)
- Voltage rating: 0.6/1kV
- Temperature rating: -15°C to +90°C
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 18mm x 10000mm x 18mm
- Weight: 8.5 kg
Key Features
- 95mm² cross-sectional area for high current capacity
- Green/Yellow insulation for earth/ground identification
- Single core, stranded copper conductor for flexibility
- PVC V-90HT insulation for enhanced heat and chemical resistance
- Suitable for fixed wiring in conduit or trunking
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Residential and commercial electrical installations
- Industrial wiring projects
- Earthing and grounding systems
- Power distribution in switchboards and control panels
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables with extruded insulation for working voltages up to and including 0.6/1kV
Environmental Benefits
- PVC insulation is lead-free and RoHS compliant
- Long service life reduces replacement frequency and waste
- High conductivity copper reduces energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Electra Building Wire 95mm Green/Yellow is available for immediate purchase. Ideal for high-capacity earthing and electrical installations in residential, commercial, and industrial settings.
