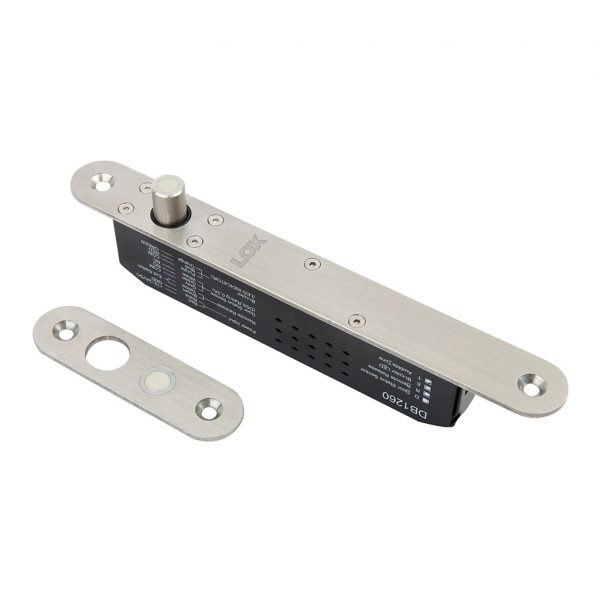

Electric Drop Bolt Power to Lock | 300kg Holding Strength | Dual Voltage 12/24VDC | by Dicker Data
The Electric Drop Bolt Power to Lock is designed for secure locking on double action doors and narrow frame installations. With a holding strength of up to 300kg and dual voltage options (12/24VDC), this mortise mount electric drop bolt ensures reliable performance. Ideal for professional installations, it features a door status sensor and is fire rated for up to 4 hours, making it perfect for high-security applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Drop Bolt Power to Lock | 300kg Holding Strength | Dual Voltage 12/24VDC | by Dicker Data
Brand: Dicker Data
SKU: DB1260PTL
Alternatively Known As: Electric Drop Bolt, Power to Lock Drop Bolt, Narrow Face Plate Drop Bolt
Technical Specifications
- Mortise mount electric drop bolt, narrow style power to lock (fail safe)
- Holding strength: up to 300kg, tested to 400,000 cycles
- Voltage/Current: Dual voltage 12/24VDC (12VDC = 530mA, 24VDC = 260mA)
- Approvals: Up to 4 hour fire rated to Australian Standard, CE & C-TICK
- Door status sensor: Reed switch
- Operational temperature range: -20°C to 60°C
- Dimensions (H x L x W): 200mm x 50mm x 25mm
- Weight: 2 kg
Key Features
- Mortise mount electric drop bolt with narrow style power to lock (fail safe)
- Holding strength up to 300kg, tested to 400,000 cycles
- Dual voltage 12/24VDC with 12VDC = 530mA and 24VDC = 260mA
- Door status sensor (reed switch)
- Operational temperature range from -20°C to 60°C
- Up to 4 hour fire rated to Australian Standard, CE & C-TICK approved
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure proper integration and compliance with fire safety standards.
Applications
- Double action (swing through) doors
- Additional locking device with Electric Strike on single doors
- Narrow style frame installations
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy efficient dual voltage operation reduces power consumption
- Durable design ensures long lifecycle reducing waste
Warranty Information
1 year warranty.
Available Now
The LOX DB1260PTL Drop Bolt Power to Lock is available now for immediate purchase. Ideal for secure locking on double action doors and narrow frame installations.
