Electric Drop Bolt Power to Open | 300kg Holding Strength | Dual Voltage 12/24VDC | by Dicker Data
The Electric Drop Bolt Power to Open is designed for secure access control, featuring a robust 300kg holding strength and dual voltage operation (12/24VDC). Ideal for double action doors and narrow frame installations, this fail secure drop bolt ensures reliable performance with a door status sensor for monitoring. Built to last with a 1-year warranty, it’s perfect for both commercial and residential security applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Drop Bolt Power to Open | 300kg Holding Strength | Dual Voltage 12/24VDC | by Dicker Data
Brand: Dicker Data
SKU: DB1260PTO
Alternatively Known As: Electric Drop Bolt, Mortise Drop Bolt, Power to Open Drop Bolt, Fail Secure Drop Bolt
Technical Specifications
- Mortise mount electric drop bolt, narrow style power to open (fail secure)
- Holding strength up to 300kg, tested to 400,000 cycles
- Dual voltage 12/24VDC; 12VDC = 530mA, 24VDC = 260mA
- Door status sensor (reed switch) for monitoring
- Operational temperature range -20°C to 60°C
- Up to 4 hour fire rated to Australian Standard, CE & C-TICK approved
- Dimensions (H x L x W): 200mm x 50mm x 25mm
- Weight: 2.5 kg
Key Features
- Mortise mount electric drop bolt with narrow style power to open (fail secure)
- Holding strength up to 300kg, tested to 400,000 cycles
- Dual voltage 12/24VDC with current 530mA at 12VDC and 260mA at 24VDC
- Door status sensor (reed switch) for DSS monitoring
- Operational temperature range from -20°C to 60°C
- Up to 4 hour fire rated to Australian Standard, CE & C-TICK approved
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure proper integration with door systems and compliance with fire safety standards.
Applications
- Double action (swing through) doors
- Additional locking device with Electric Strike on single doors
- Narrow style frame installations
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy efficient dual voltage operation reduces power consumption.
- Durable design reduces replacement frequency and waste.
Warranty Information
1 year warranty.
Available Now

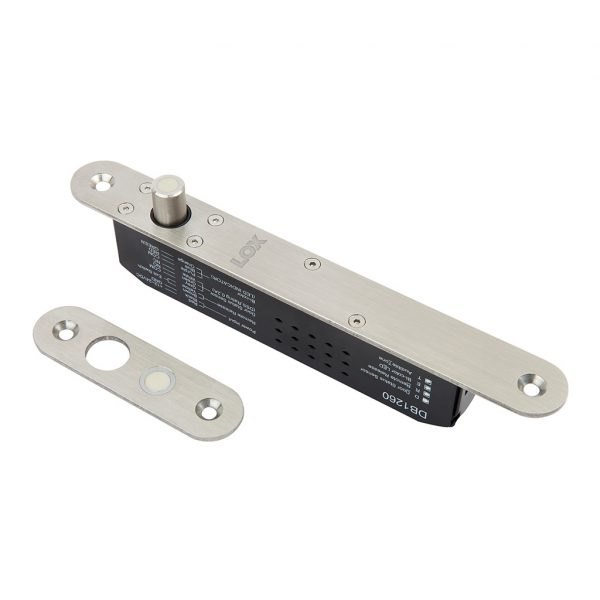

The LOX DB1260PTO Drop Bolt Power to Open 25mm Round Face Plate is available now for immediate purchase. Ideal for security applications on double action doors and narrow frame installations.
