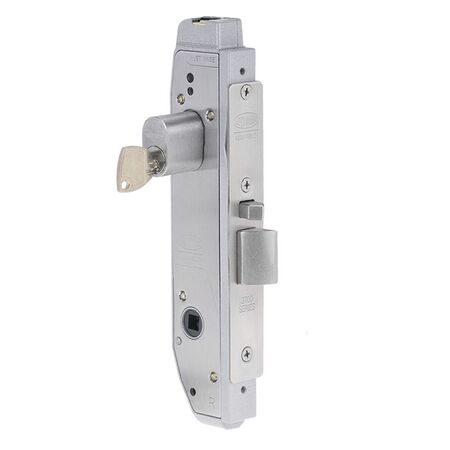

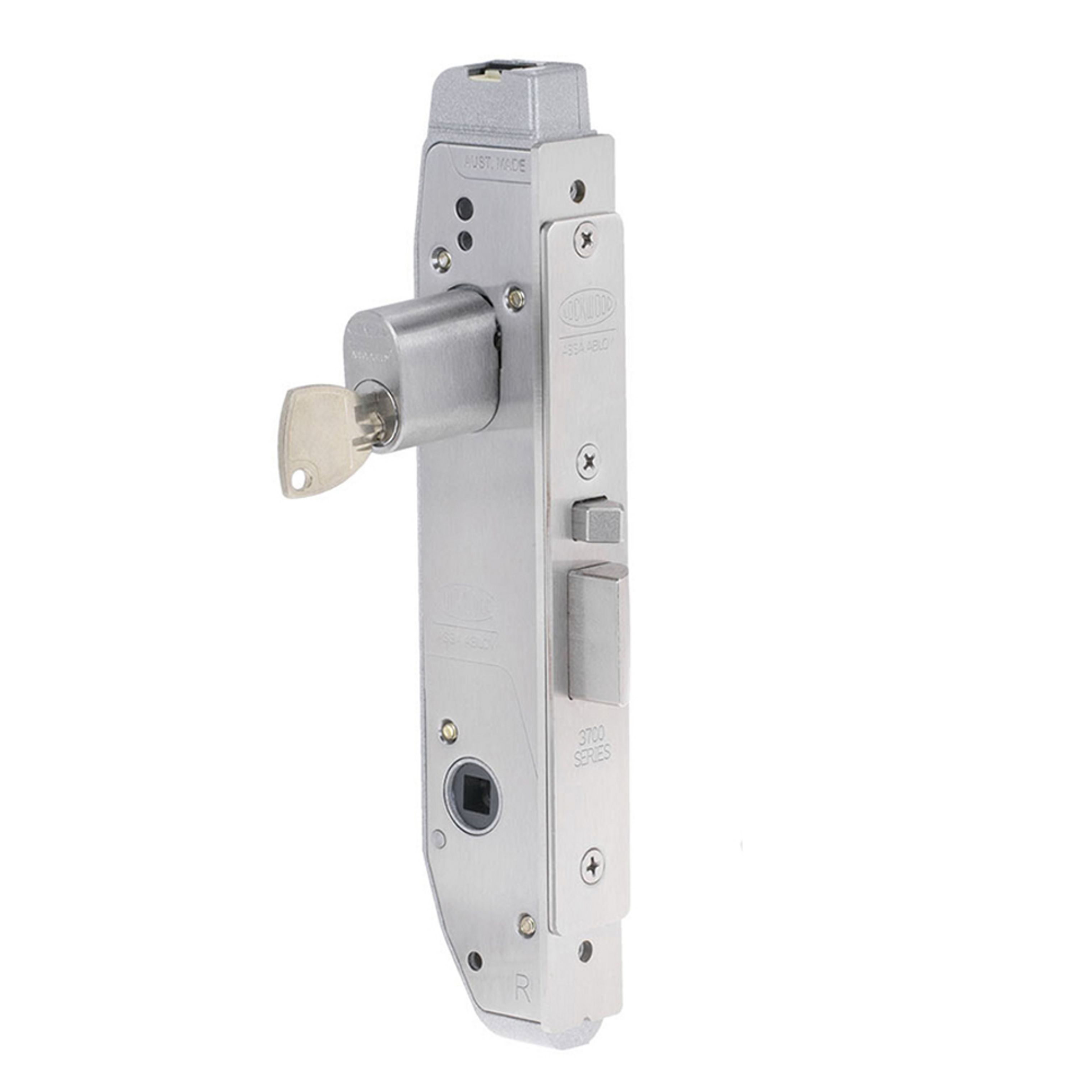

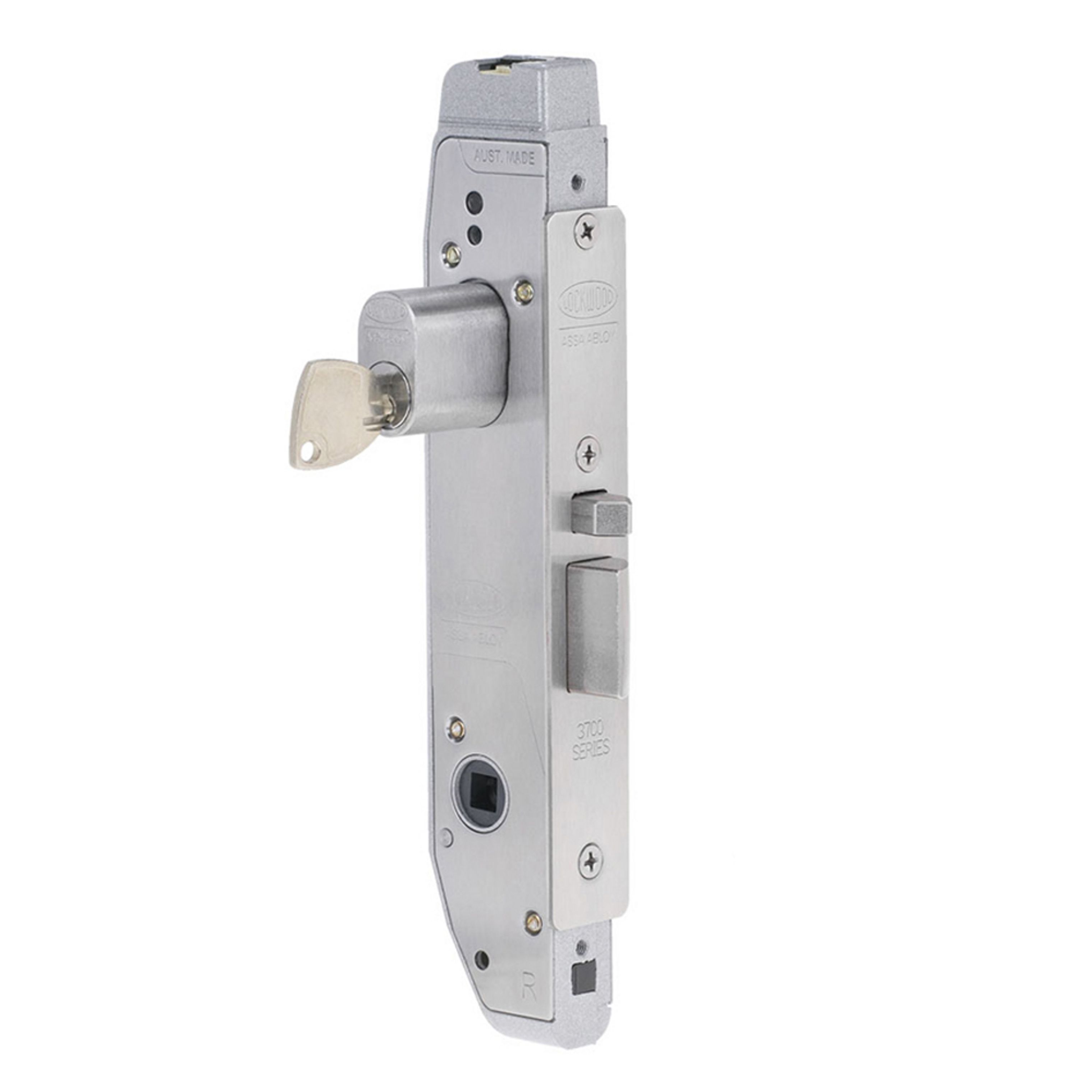

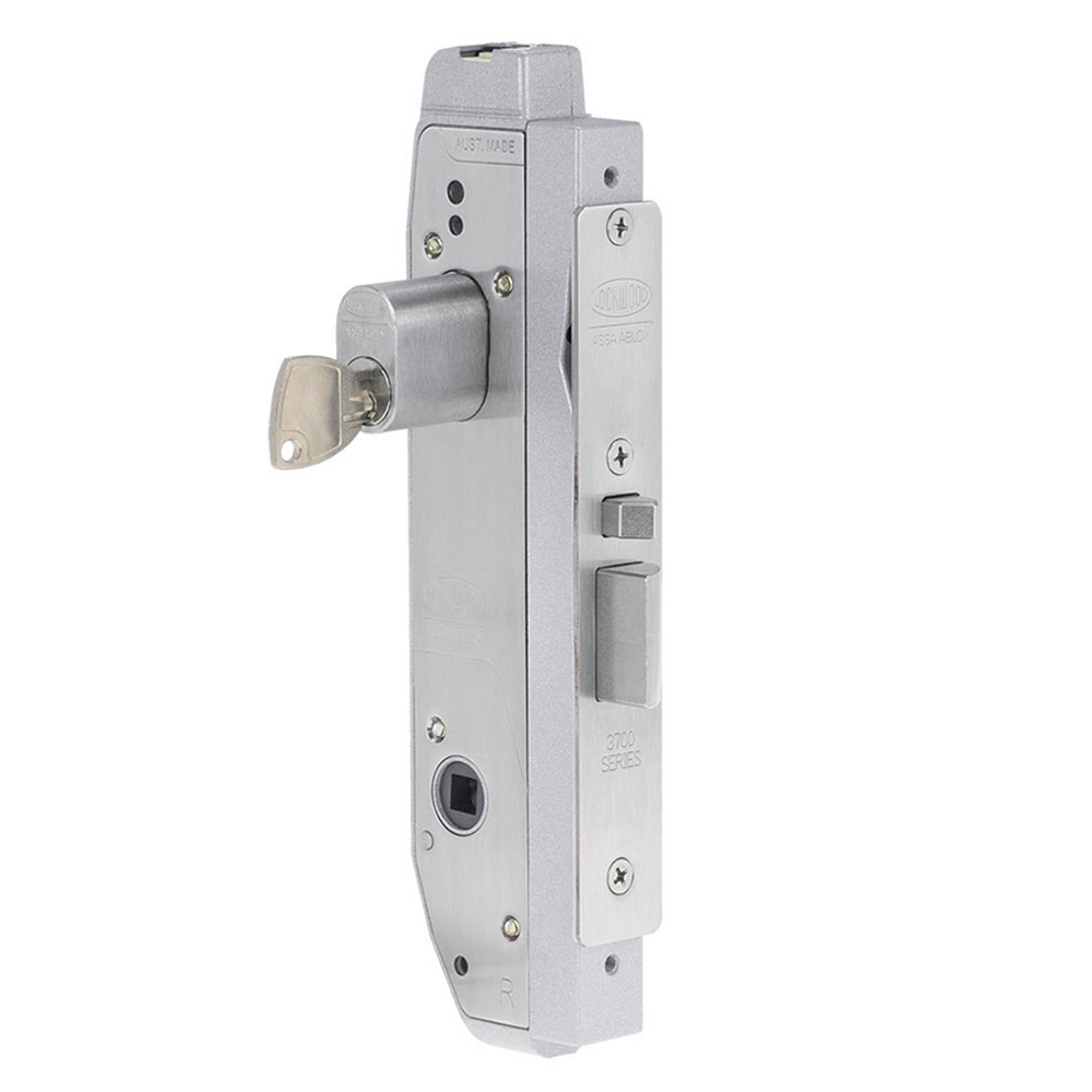

Electric Mortice Lock 3782 | 9-28VDC | Durable Zinc Alloy | 5-Year Warranty | by Lockwood
The Electric Mortice Lock 3782 is designed for commercial security applications, operating on 9-28VDC with a maximum current of 300mA. Built with a durable zinc alloy case and stainless steel chassis, it offers multiple monitoring options including key override and door position. Ideal for narrow stile hinged doors and integration with electronic access control systems, this lock ensures compliance with Australian Lock Standards for enhanced security.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Mortice Lock 3782 | 9-28VDC | Durable Zinc Alloy | 5-Year Warranty | by Lockwood
Brand: Lockwood
SKU: 3782ELSS
Alternatively Known As: Electric Mortice Lock, Selector 3782EL Lock, Lockwood Electric Lock, Mortice Door Lock 23mm Backset
Technical Specifications
- Voltage: 9 – 28VDC, 300mA MAX (20mA continuous if LEDs activated)
- Compatible with Lockwood 4800 and 5800 Series Furniture
- Monitoring: Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO/NC), Lock Status (NC) – all 30VDC 50mA MAX
- Operating Temperature: -15 to 60ºC
- Case Material: High purity zinc alloy with stainless steel chassis plates
- Backset Options: 23mm, 25.4mm, 30mm, 38mm
- Latch Bolts: Stainless steel, 15mm size with auxiliary deadlatch bolt
- Door Thickness: Metal 35-50mm, Timber 32-50mm (timber fixing kit available)
- Cable: 3.6m with 12 pin connector and water deflecting boot
- Recommended Cable: 8AWG (0.82mm²) for runs up to 30m
- Cylinder: Standard Lockwood oval brass cylinders with bump resistant five pin tumbler
- Rebate Kits: Available for 13mm rebate (for 30mm and 38mm backset locks)
- Dimensions (H x L x W): 150mm x 100mm x 25mm
- Weight: 2.5 kg
Key Features
- High performance electric mortice lock designed and manufactured in Australia
- Compatible with Lockwood 4800 and 5800 Series Furniture
- Operates on 9 – 28VDC with 300mA max current
- Multiple monitoring options including key override, deadlatch, door position, REX, and lock status
- Durable zinc alloy case with stainless steel chassis plates
- Reversible for left and right hand doors, opening in or out
- Stainless steel latch bolts with deadlatching auxiliary bolt
- Conforms to Australian Lock Standard AS-4145.2-2008 for physical security, durability, and anti-corrosion
- Supplied with 3.6m cable with 12 pin connector and water deflecting boot
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure compliance with security standards and proper integration with access control systems.
Applications
- Commercial narrow stile hinged doors
- Single-action escape doors
- Integration with electronic access control systems
- Use with push buttons, intercom systems, key switches, keypads, or card readers
Standards & Compliance
- Complies with AS-4145.2-2008 Australian Lock Standard for physical security (Level S7 and S8), durability (Level D8), and anti-corrosion (Level C6)
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Energy-efficient low current operation minimizes power consumption
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Lockwood 3782EL Electric Mortice Primary Lock is available for immediate purchase, ideal for commercial security applications requiring robust and compliant electric locking solutions.
