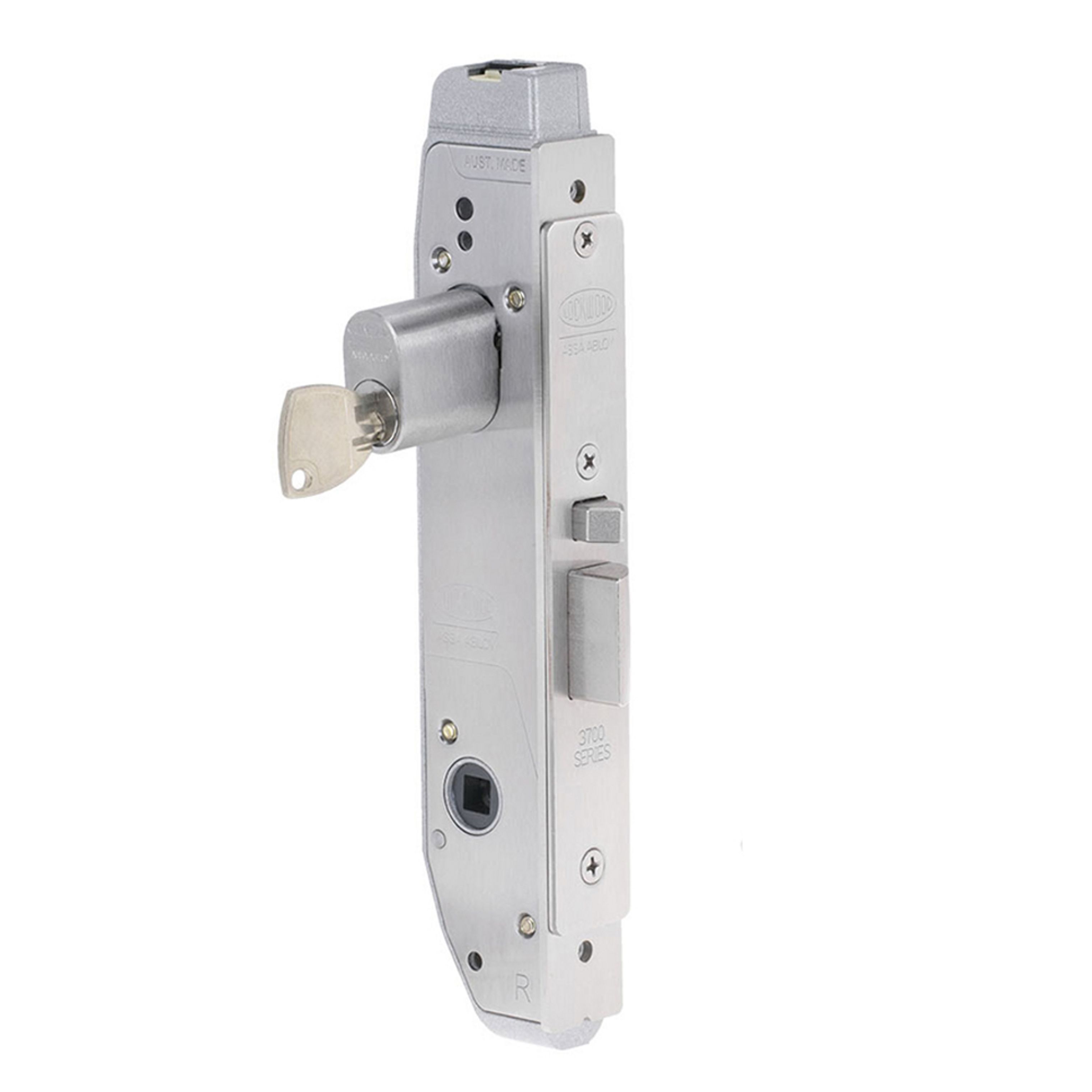

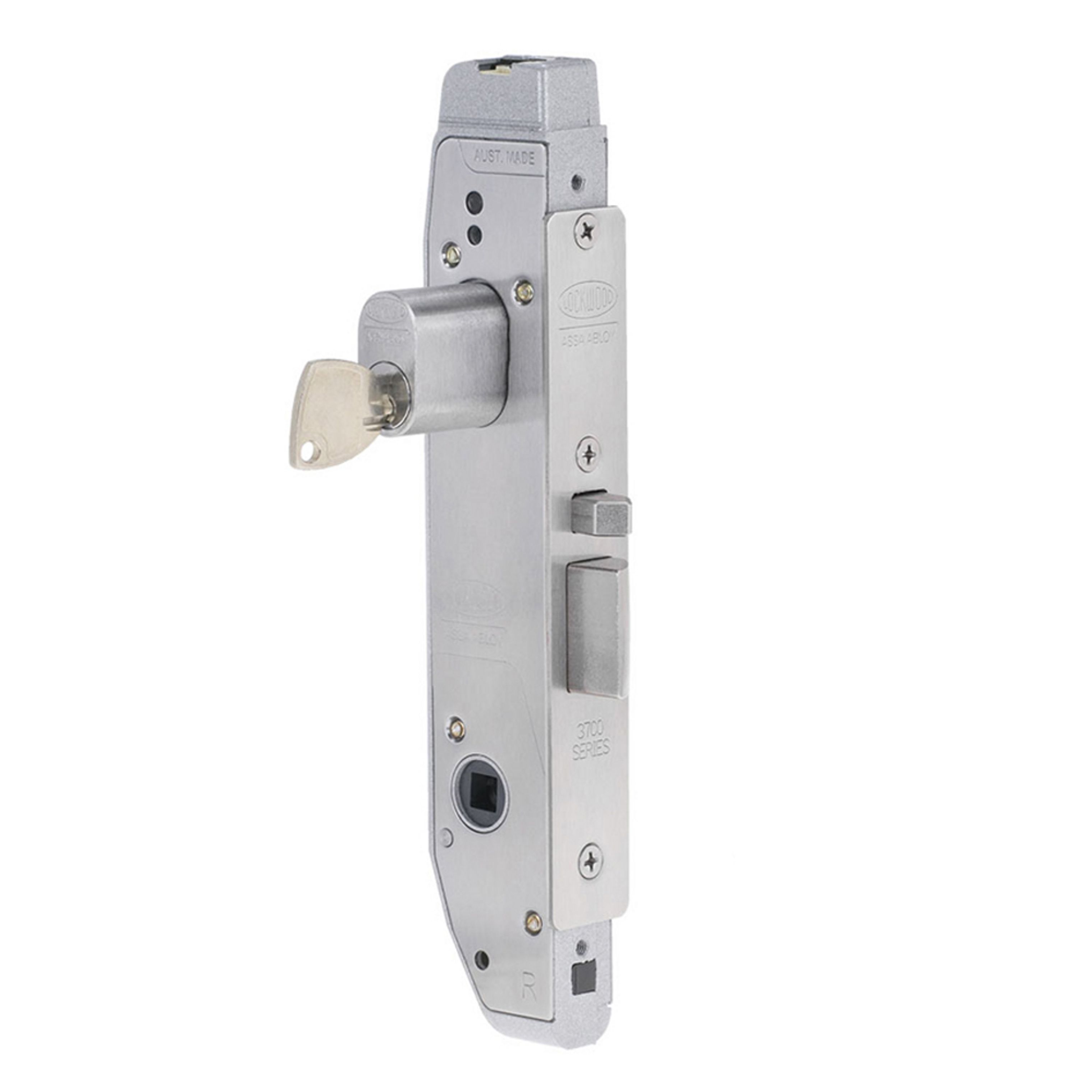

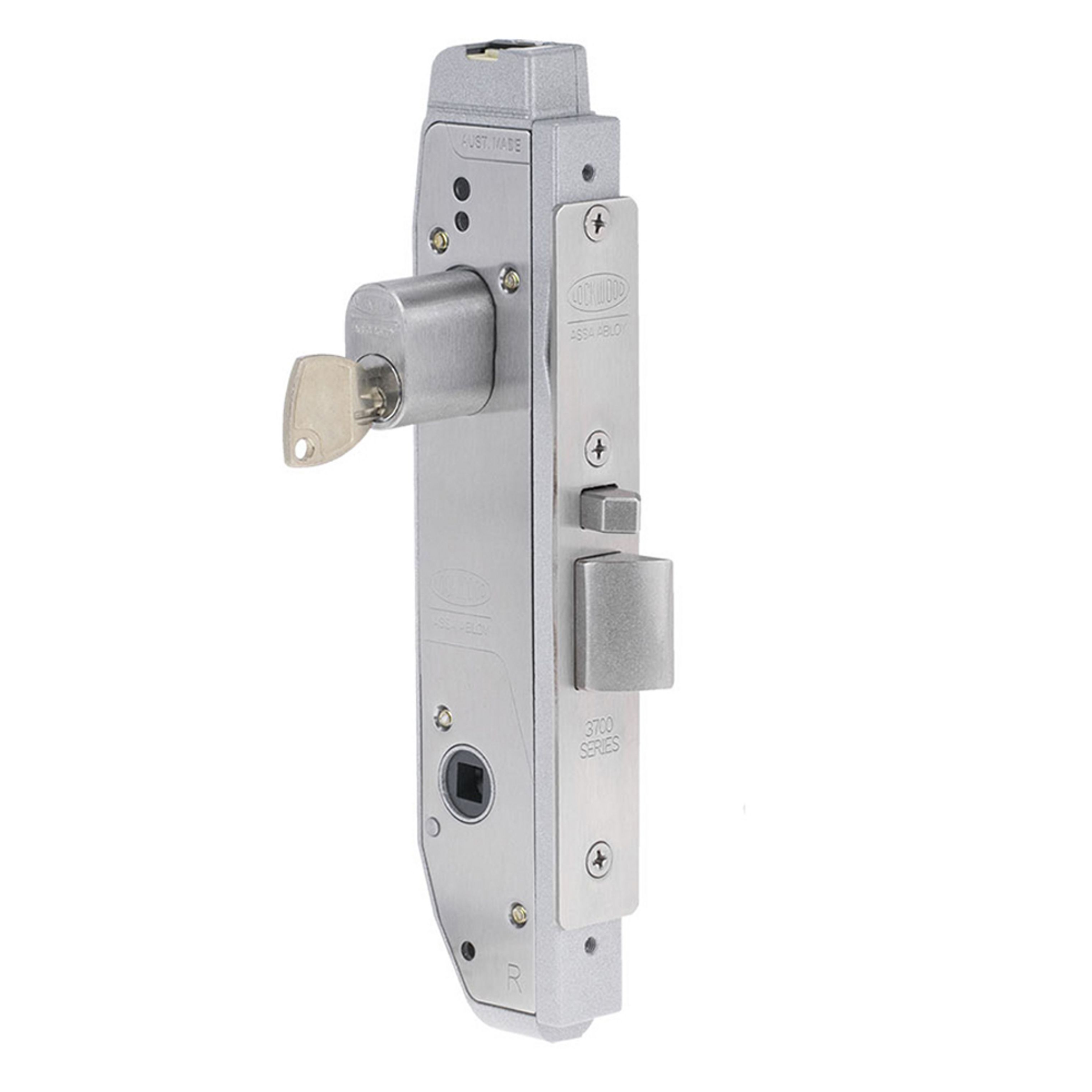

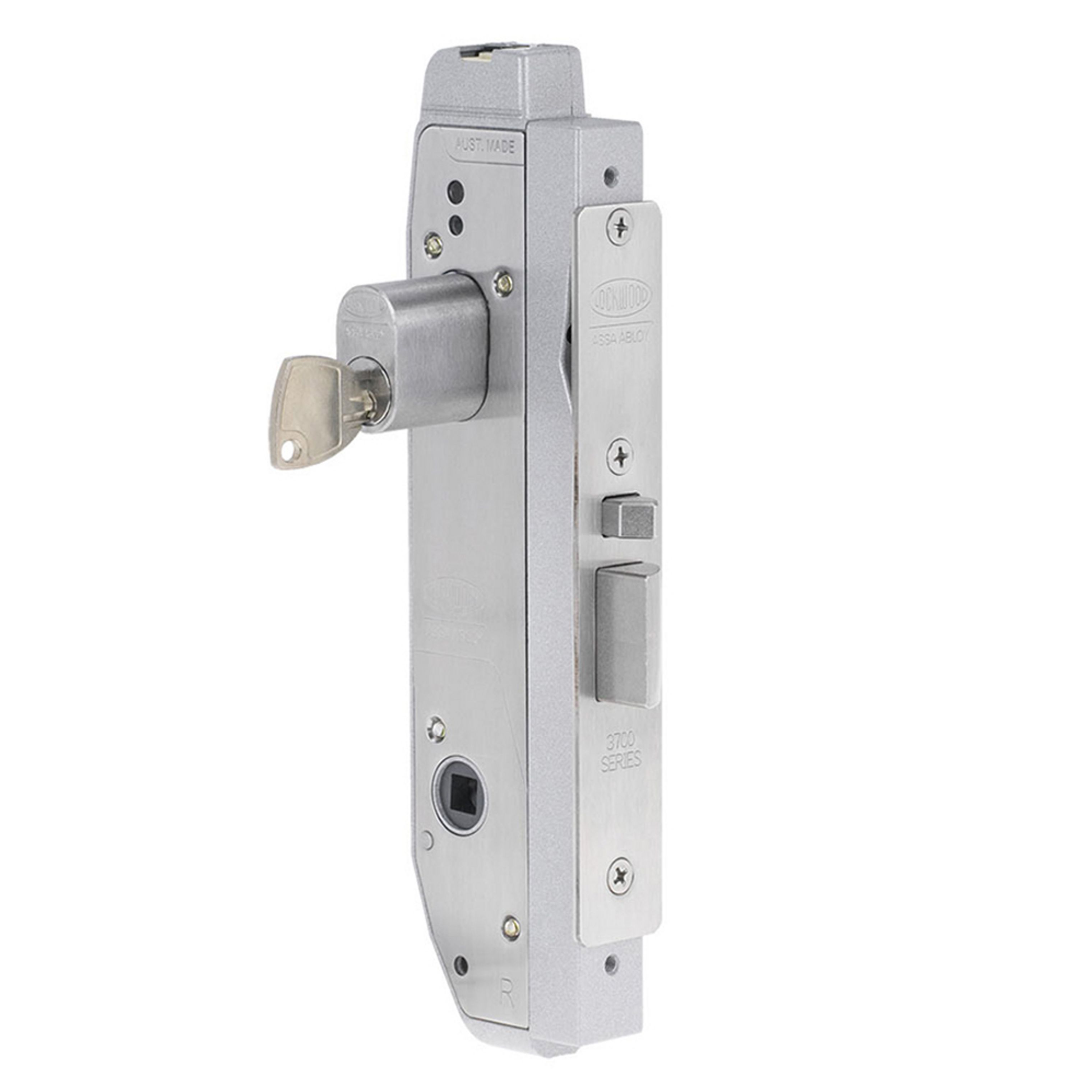

Electric Mortice Lock 5782 | 9-28VDC | Durable Zinc Alloy | 5-Year Warranty | by Lockwood
The Electric Mortice Lock 5782 is designed for high-performance security, operating on 9-28VDC with a maximum current of 300mA. Ideal for commercial narrow stile hinged doors, it features a durable zinc alloy case and stainless steel latch bolts, ensuring reliability and compliance with Australian Lock Standards. Perfect for integration with electronic access control systems, this lock is a smart choice for security-focused applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Mortice Lock 5782 | 9-28VDC | Durable Zinc Alloy | 5-Year Warranty | by Lockwood
Brand: Lockwood
SKU: 5782ELSS
Alternatively Known As: Electric Mortice Lock, Selector 3782EL Lock, Lockwood 5782EL Electric Lock, Mortice Door Lock 30mm Backset
Technical Specifications
- Voltage: 9 – 28VDC, 300mA max current (20mA continuous if LEDs activated)
- Compatible with Lockwood 4800 and 5800 Series Furniture
- Monitoring: Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO/NC), Lock Status (NC) – all 30VDC 50mA max
- Operating temperature range: -15 to 60ºC
- Case material: High purity zinc alloy with stainless steel chassis plates
- Backset options: 23mm, 25.4mm, 30mm, 38mm
- Latch bolts: Stainless steel, 15mm size with auxiliary deadlatching bolt
- Door thickness compatibility: Metal 35-50mm, Timber 32-50mm
- Cable: 3.6m with 12 pin connector and water deflecting boot
- Recommended cabling: 8AWG (0.82mm²) for runs up to 30m
- Security: Meets Level S7 and S8 Australian Lock Standard AS-4145.2-2008
- Durability: Level D8 Australian Lock Standard AS-4145.2-2008
- Anti-corrosion: Level C6 (168 hours) Australian Standard AS-4145.2-2008
- Cylinder: Requires Lockwood oval shaped brass cylinders with bump resistant five pin tumbler mechanism
- Dimensions (H x L x W): 150mm x 80mm x 30mm
- Weight: 2.5 kg
Key Features
- High performance electric mortice lock designed and manufactured in Australia
- Compatible with Lockwood 4800 and 5800 Series Furniture
- Operates on 9 – 28VDC with 300mA max current
- Includes monitoring for key override, deadlatch, door position, REX, and lock status
- Reversible for left and right hand doors, opening in or out
- Durable zinc alloy case with stainless steel chassis plates
- Stainless steel latch bolts with deadlatching auxiliary bolt
- Conforms to Australian Lock Standard AS-4145.2-2008 for security, durability, and anti-corrosion
- Supplied with 3.6m cable with 12 pin connector and water deflecting boot
- Suitable for metal doors 35-50mm thick and timber doors 32-50mm thick
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure compliance with security standards and proper integration with access control systems.
Applications
- Commercial narrow stile hinged doors
- Single-action escape doors
- Integration with electronic access control systems
- Use with push buttons, intercom systems, key switches, keypads, or card readers
Standards & Compliance
- Complies with AS-4145.2-2008 Australian Lock Standard for physical security, durability, and anti-corrosion
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Energy-efficient low current operation minimizes power consumption
Warranty Information
5 year warranty covering manufacturing defects and performance issues.
Available Now
The Lockwood 5782 Electric Mortice Primary Lock is available for immediate purchase, ideal for commercial and security-focused door applications.
