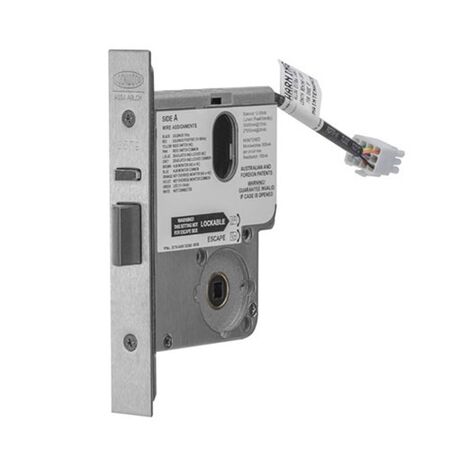

Electric Mortice Lock 60mm Backset | Monitored | 12-24VDC | Satin Chrome | by Dicker Data

BRAND: Dicker Data
SKU: 3579ELM0SC
$1,363.10 List price: $1,649.80
+ −
30 Days Return Delivery Options
The Electric Mortice Lock 60mm Backset is designed for high-security applications, featuring monitored operation with dual key override and LED indication. Ideal for government buildings and commercial projects, this lock operates on 12-24VDC and is constructed from durable zinc alloy for enhanced vandal resistance. With a 5-year warranty, it ensures reliable performance in secure area access control.

Product Name/Title: Electric Mortice Lock 60mm Backset | Monitored | 12-24VDC | Satin Chrome | by Dicker Data

Brand: Dicker Data

SKU: 3579ELM0SC

Alternatively Known As: Electric Mortice Lock, Monitored Mortice Lock, Secure Area Mortice Lock, Fire Rated Mortice Lock, Lockwood 3579 Mortice Lock

Technical Specifications
  • Operating Voltage: 12Vdc - 24Vdc
  • Current: 500mA max, 80mA holding at 12Vdc; 275mA max, 50mA holding at 24Vdc
  • LED Current: Additional 15mA max when LEDs are fitted
  • Monitoring: Dual key override, deadlatched, locked, door closed, request to exit, microswitches rated 500mA max @ 30Vdc, reed switch 100mA max @ 30Vdc
  • Operating Temperature Range: -20°C to +60°C
  • Case Material: High purity zinc alloy with stainless steel cover plates
  • Backset: Standard 60mm, extended 89mm and 127mm available on application
  • Latchbolts: Reversible stainless steel construction
  • Door Clearance: 3 - 6.5mm
  • Door Thickness: 32 to 50mm standard applications
  • Cylinder: Standard Lockwood oval shaped cylinders
  • Cabling: 1.6 metre cable with 12 pin socket, recommended 18AWG cable runs up to 30m
  • Finish: Satin Chrome (SC) standard
  • Dimensions (H x L x W): 150mm x 100mm x 25mm
  • Weight: 3.5 kg
Key Features
  • Constructed from high grade zinc alloy secured between stainless steel plates for vandal resistance
  • Monitored versions only with multiple monitoring features including dead latched, locked, door position, dual key override, request to exit, and LED indication
  • Field changeable settings including fail safe/fail secure configuration, multi-voltage operation (12-24 VDC), handing for left and right hand doors
  • Selectable free lever or locked lever on both sides of the door
  • Key override monitoring on both sides
  • Reversible stainless steel latch and faceplate
  • Compatible with Lockwood series door furniture
  • SCEC endorsed for secure area applications
Professional Installation Requirements
  • Professional installation by qualified locksmith or security system installer is recommended to ensure compliance with SCEC endorsement and fire rating requirements.
Applications
  • High security government buildings
  • Institutional facilities
  • Commercial projects requiring secure area access control
  • Fire door assemblies requiring up to 4 hours fire rating
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
  • AS 1905.1 - 2005 Part 1: Fire Resistant Doorsets
  • AS4145.2.2008 - Australian Lock Standard (SL8 and D8 ratings)
Environmental Benefits
  • Durable materials reduce need for frequent replacements
  • Energy efficient operation with low current draw
  • Supports integration with electronic access control systems to reduce physical key usage
Warranty Information

5 year warranty provided by manufacturer.

Available Now

Available for immediate purchase, ideal for high security government, institutional, and commercial projects requiring monitored electric mortice locks with fire rating.
