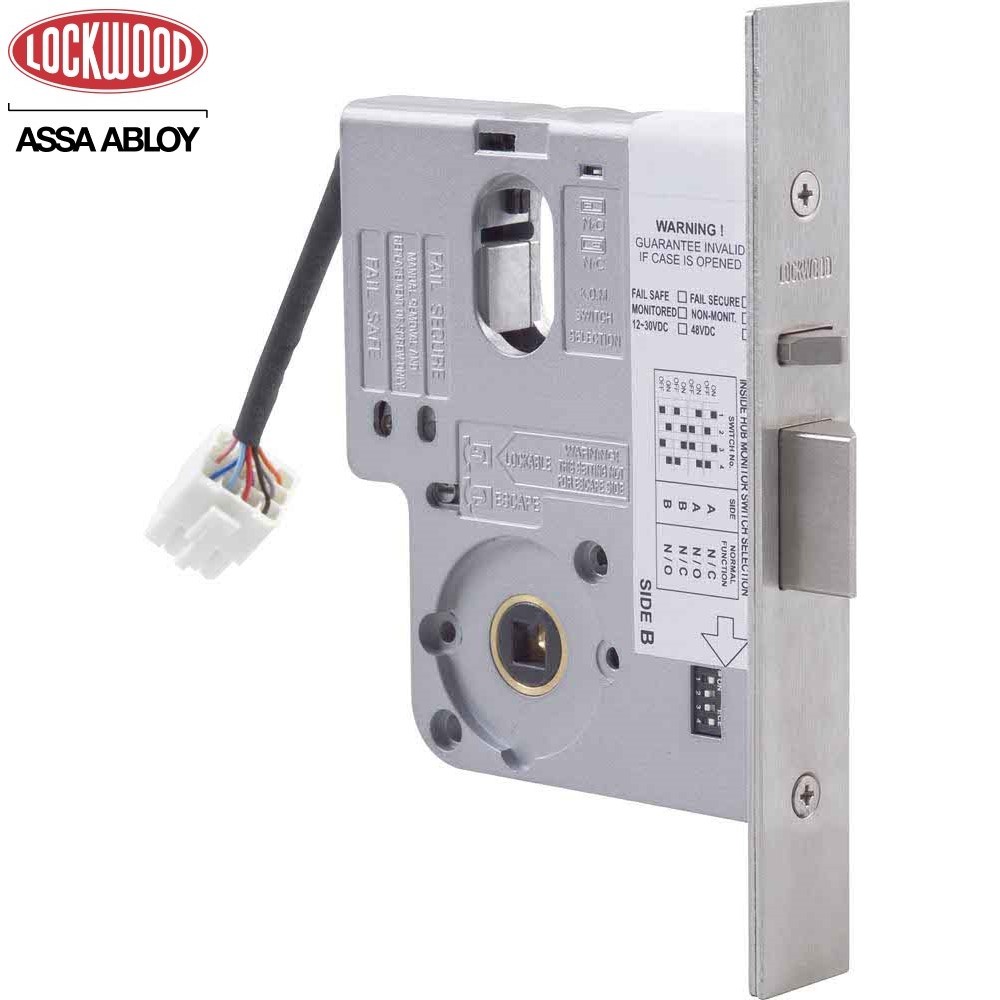

Electric Mortice Lock 60mm Backset | Monitored | 12-24VDC | Satin Chrome | by LOCKWOOD
The Electric Mortice Lock 60mm Backset is designed for robust commercial door security, operating on 12-24VDC with monitored functions for enhanced access control. Built from high-grade zinc alloy with a stainless steel latch bolt, it supports integration with keypads and intercom systems, making it ideal for businesses seeking reliable security solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Mortice Lock 60mm Backset | Monitored | 12-24VDC | Satin Chrome | by LOCKWOOD
Brand: LOCKWOOD
SKU: 3570ELM0SC
Alternatively Known As: Electric Mortice Lock, Monitored Mortice Lock, Lockwood 3570 Series Lock, Electronic Mortice Lock, Access Control Mortice Lock
Technical Specifications
- Operating Voltage: 12Vdc - 24Vdc
- Current: 500mA max, 80mA holding @ 12Vdc; 275mA max, 50mA holding @ 24Vdc
- LED Current: Additional 15mA max when LEDs are fitted
- Monitoring: Dual key override, deadlatched, locked, door closed, request to exit
- Microswitches: 500mA max @ 30Vdc each circuit
- Reed switch: 100mA max @ 30Vdc
- Operating Temperature: -20°C to +60°C
- Case Material: High purity zinc alloy
- Backset: 60mm standard (also available 89mm & 127mm)
- Latch Bolts: Reversible stainless steel
- Door Clearance: 3 - 6.5 mm
- Door Thickness: 32 to 50 mm standard
- Cylinder: Standard Lockwood oval shaped cylinders
- Cabling: 1.6m cable with 12 pin socket; recommended 18AWG cable runs up to 30m
- Compatible with Lockwood series door furniture
- Finish: Satin Chrome standard

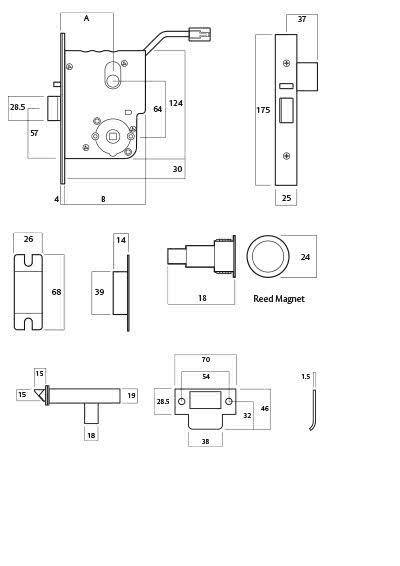

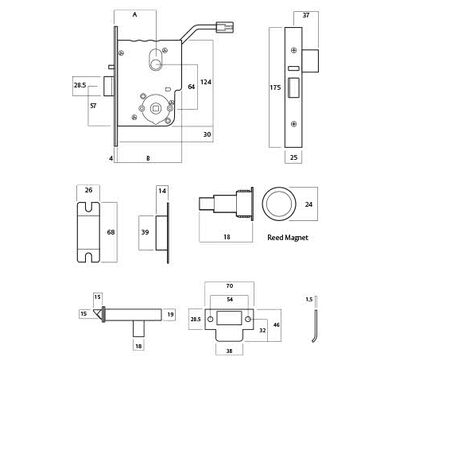

- Dimensions (H x L x W): 150mm x 100mm x 25mm
- Weight: 2.5 kg
Key Features
- High performance lock constructed from high grade zinc alloy with stainless steel latch bolt and face plate
- Operable by push buttons, intercom systems, key switches, and electronic access control systems
- Field configurable fail safe/fail secure settings
- Multi-voltage operation from 12-24 Vdc
- Supports left hand and right hand door handing
- Selectable free lever or locked lever on both sides
- Monitored functions including dead latched, locked, door position, dual key override, request to exit, and LED indication
- Monitoring contacts configurable as normally closed or normally open
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure correct configuration and integration with access control systems.
Applications
- Commercial door security
- Access control integration with keypads and card readers
- Push button, intercom, and key switch operated doors
Standards & Compliance
- Complies with AS4145.2.2008 - Australian Lock Standard (SL8 Security and D8 Durability)
- RCM Certified
- SCEC Endorsed for SL3 Medium Threat Level Areas
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy efficient operation with low current consumption
- Supports integration with electronic access control systems to reduce physical key usage
Warranty Information
5 years warranty.
Available Now
The LOCKWOOD Electric Mortice Lock 60mm Backset Monitored KOM 12-24VDC is available for immediate purchase, ideal for commercial security and access control applications.
