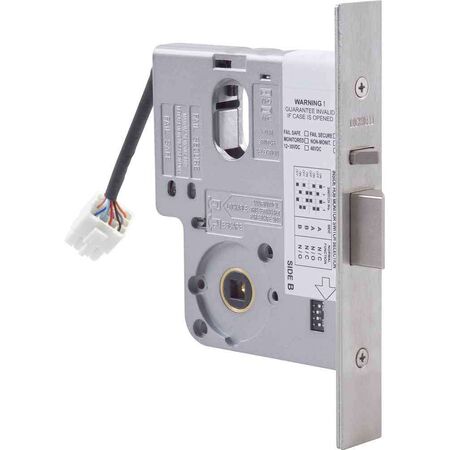

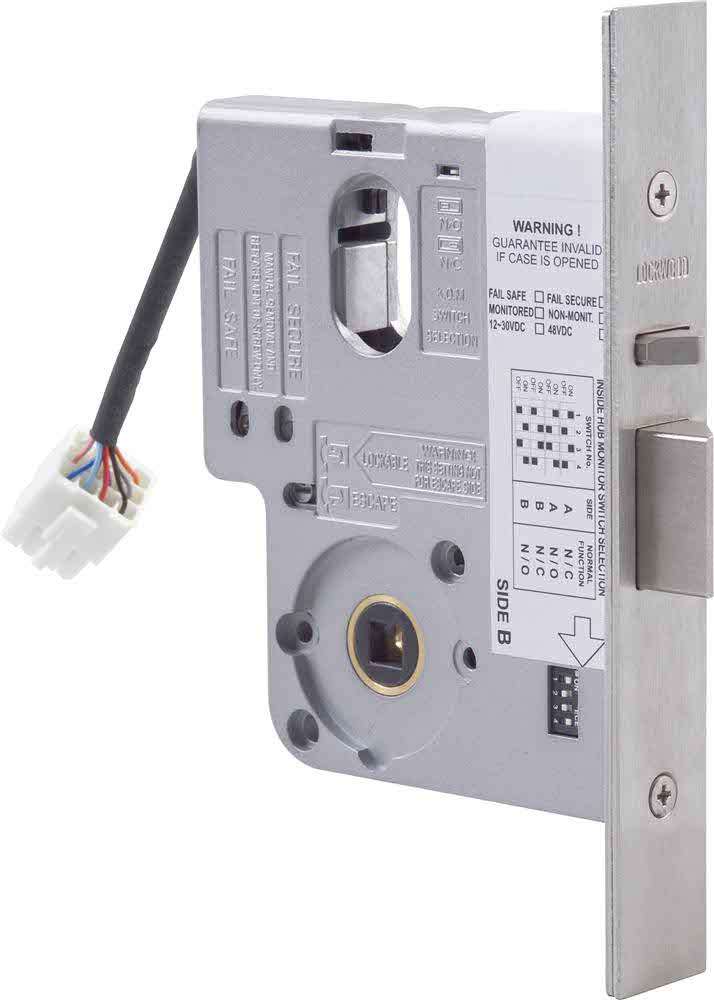

Electric Mortice Lock 60mm Backset | Fail Safe/Fail Secure | Satin Chrome Finish | by LOCKWOOD
The Electric Mortice Lock 60mm Backset is designed for commercial doors requiring reliable electric locking. With high-performance construction and field-changeable settings for fail safe or fail secure operation, this lock is perfect for integration with access control systems. Built for durability and energy efficiency, it ensures long-lasting security for your premises.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Mortice Lock 60mm Backset | Fail Safe/Fail Secure | Satin Chrome Finish | by LOCKWOOD
Brand: LOCKWOOD
SKU: 3570ELN0SC
Alternatively Known As: Electric Mortice Lock, Lockwood 3570 Series Electric Lock, Commercial Electric Door Lock, Fail Safe Electric Mortice Lock
Technical Specifications
- Operating Voltage: 12Vdc - 24Vdc
- Current: 500mA max, 80mA holding @ 12Vdc; 275mA max, 50mA holding @ 24Vdc
- LED Current: Additional 15mA max when LEDs fitted
- Operational Temperature Range: -20°C to +60°C
- Backset: 60mm standard (also available in 89mm & 127mm)
- Latch Bolts: Reversible stainless steel construction
- Door Clearance: 3 - 6.5 mm
- Door Thickness: Suitable for 32 to 50 mm
- Cylinder: Standard Lockwood oval shaped cylinders
- Cabling: 1.6 metre cable with 12 pin socket supplied; recommended 18AWG cable runs up to 30m
- Finish: Satin Chrome standard
- Compatible with Lockwood series door furniture

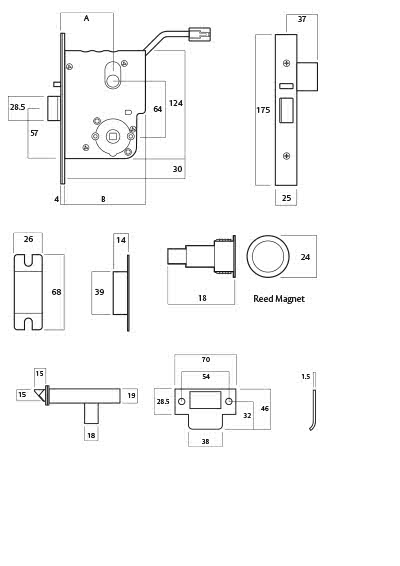

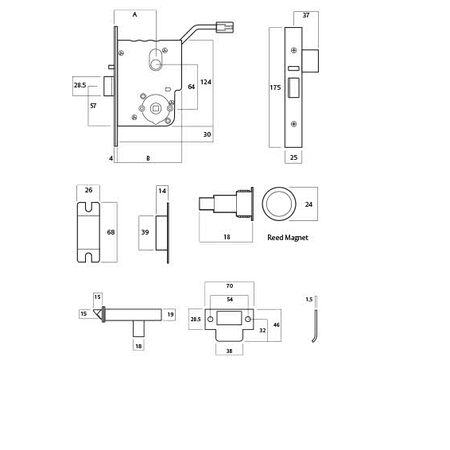

- Dimensions (H x L x W): 150mm x 40mm x 60mm
- Weight: 2 kg
Key Features
- High performance lock constructed from high purity zinc alloy with stainless steel latch bolt and face plate
- Field changeable settings including fail safe/fail secure configuration
- Multi-voltage operation from 12-24 Vdc
- Suitable for left hand and right hand doors
- Selectable free lever or locked lever on both sides of the door
- Non monitored version
Professional Installation Requirements
- Professional installation by a qualified locksmith or security technician is recommended to ensure correct configuration and compliance with security standards.
Applications
- Commercial doors requiring electric mortice locking
- Integration with push buttons, intercom systems, key switches
- Electronic access control systems with keypads or card readers
Standards & Compliance
- Complies with AS4145.2.2008 Australian Lock Standard for Security (SL8) and Durability (D8)
- RCM Certified
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Energy efficient operation with low current consumption
Warranty Information
5 year warranty.
Available Now
The LOCKWOOD Electric Mortice Lock 60mm Backset Non Monitored is available for immediate purchase, ideal for commercial security door applications.
