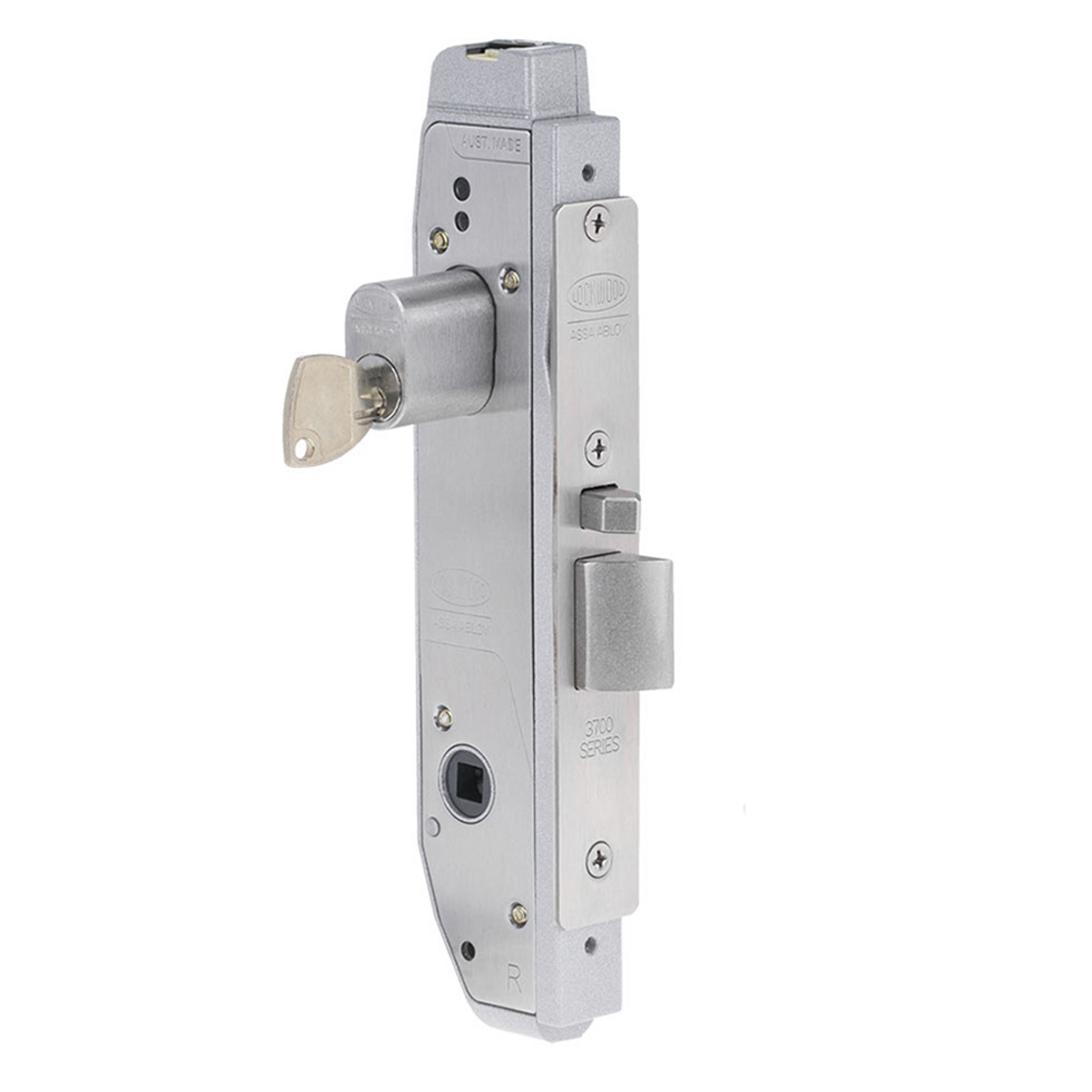

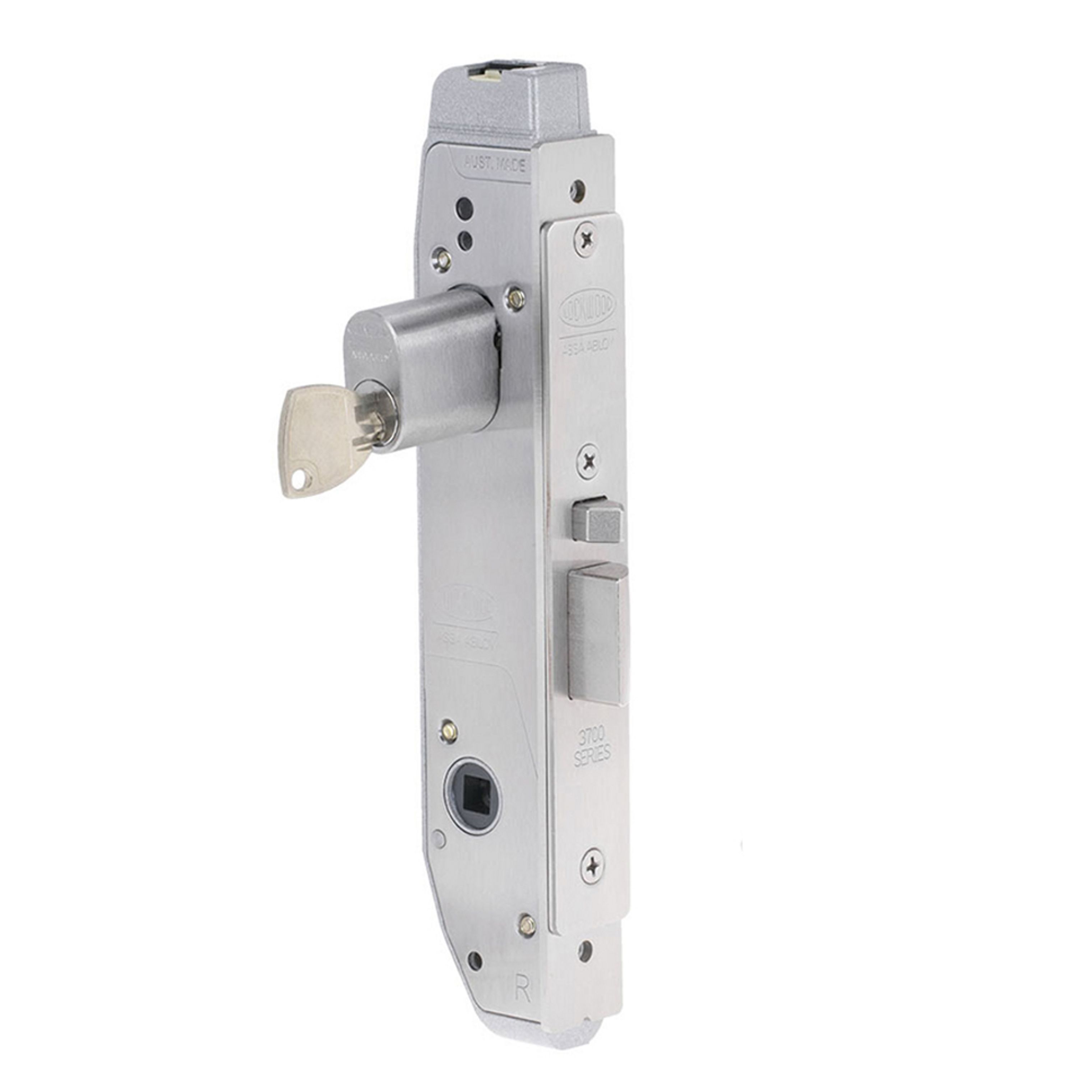

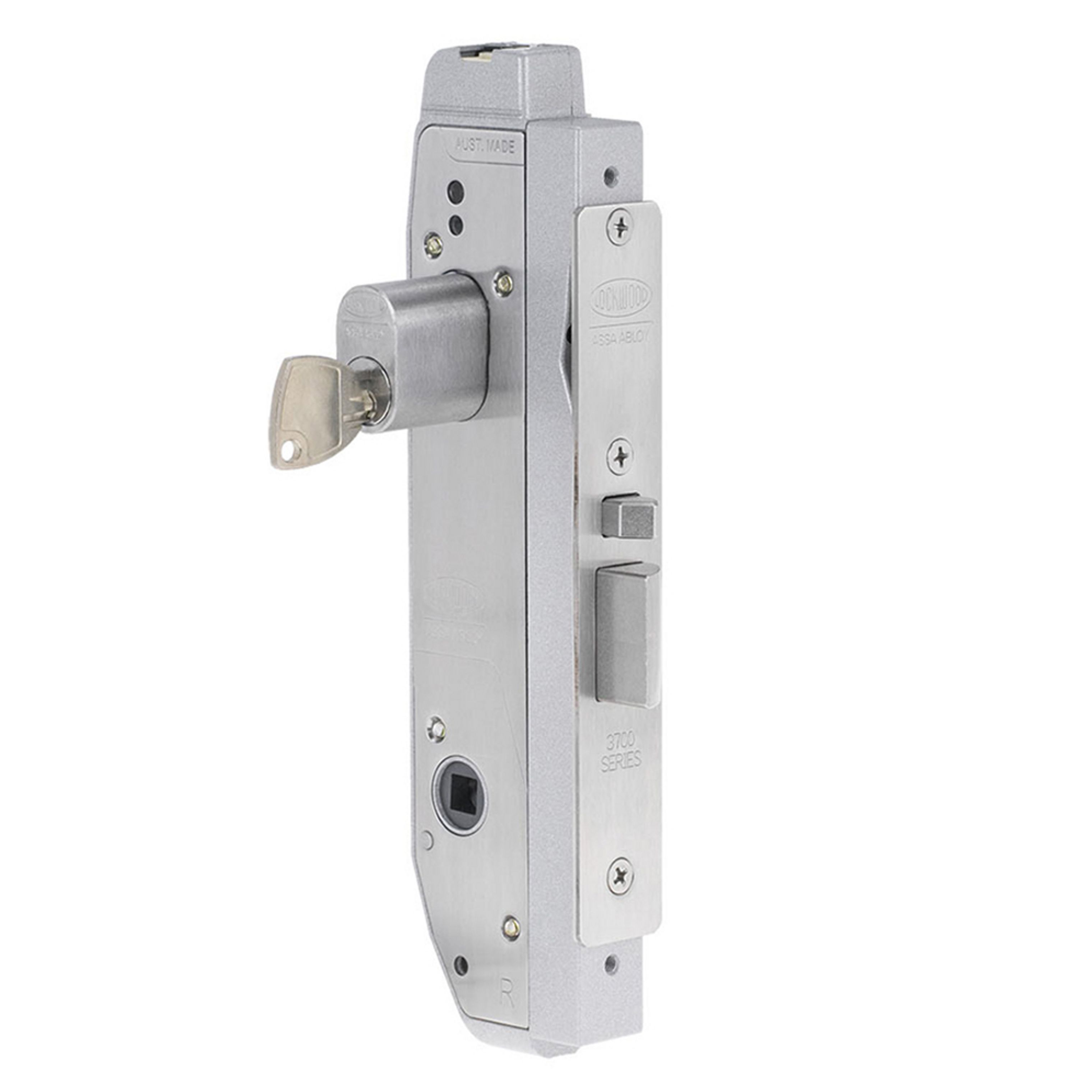

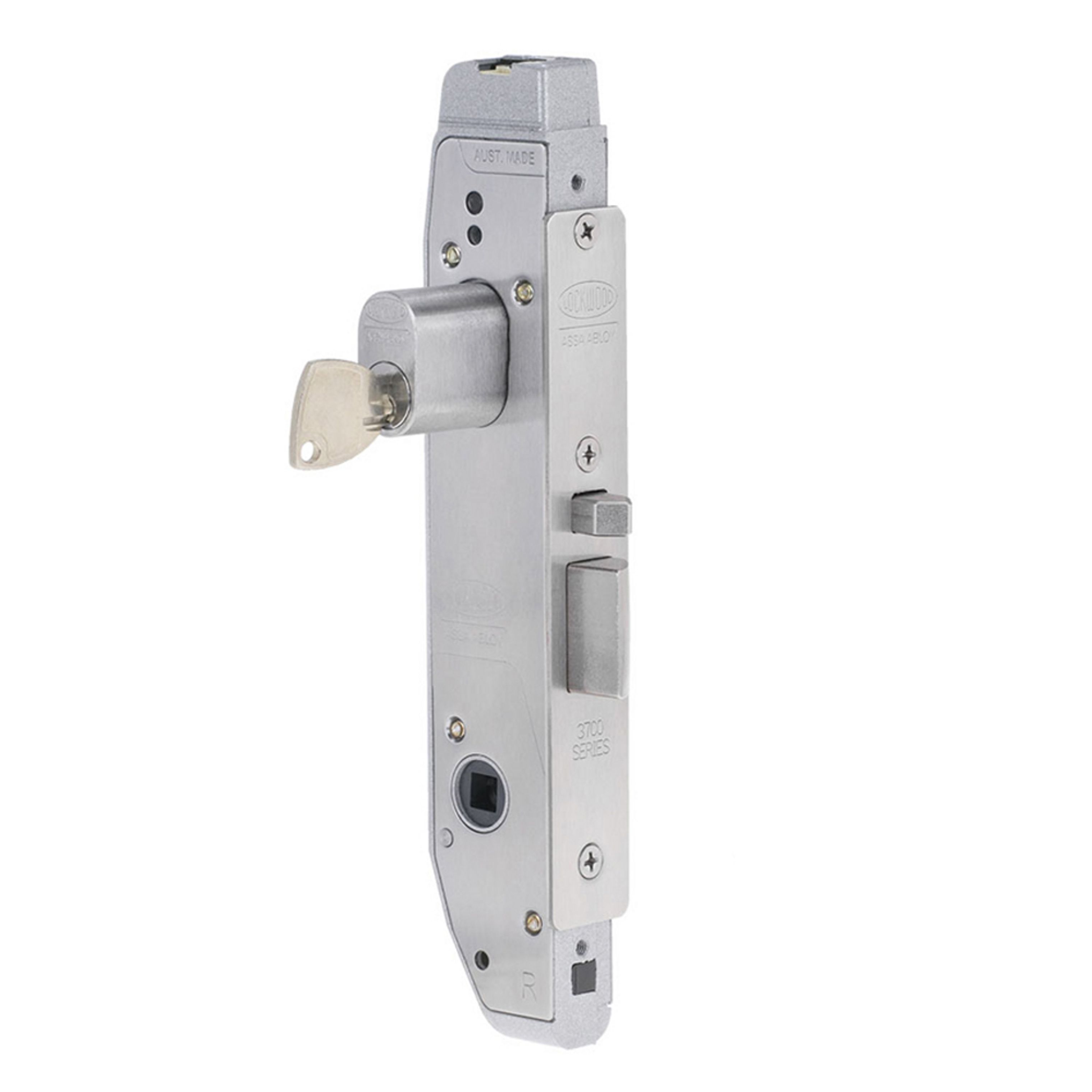

Electric Mortice Lock 6782 | 9-28VDC Operation | Durable Zinc Alloy | 5-Year Warranty | by Lockwood
The Electric Mortice Lock 6782 is designed for commercial security, operating on 9-28VDC with a maximum current of 300mA. Its durable zinc alloy case and stainless steel chassis ensure longevity, while multiple monitoring options like key override and door position enhance security. Ideal for narrow stile hinged doors and integration with electronic access control systems, this lock is perfect for businesses seeking reliable locking solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Mortice Lock 6782 | 9-28VDC Operation | Durable Zinc Alloy | 5-Year Warranty | by Lockwood
Brand: Lockwood
SKU: 6782ELSS
Alternatively Known As: Electric Mortice Lock, Selector 3782EL Lock, Lockwood 6782EL Electric Lock, Commercial Electric Mortice Lock
Technical Specifications
- Voltage: 9 – 28VDC, 300mA MAX (20mA continuous if LEDs activated)
- Monitoring: Key override (NC), Deadlatch (NC), Door Position (NC), REX (NO/NC), Lock Status (NC) – all 30VDC 50mA MAX
- Environment: Operating temperature -15 to 60ºC
- Case/Cover: High purity zinc alloy with stainless steel chassis plates
- Backset options: 23mm, 25.4mm, 30mm, 38mm
- Cabling: 3.6m cable with 12 pin connector and water deflecting boot
- Recommended cabling: 8AWG (0.82mm²) for runs up to 30m
- Latch Bolts: Stainless steel, 15mm size with auxiliary deadlatch bolt
- Door Thickness: Metal 35-50mm, Timber 32-50mm
- Security: Complies with AS-4145.2-2008 Level S7 and S8 with accessories
- Durability: Complies with AS4145.2-2008 Level D8
- Anti-Corrosion: Complies with AS4145.2-2008 Level C6 (168 hours)
- Cylinder: Requires Lockwood oval shaped brass cylinders with bump resistant five pin tumbler mechanism
- Dimensions (H x L x W): 150mm x 100mm x 38mm
- Weight: 2.5 kg
Key Features
- High performance electric mortice lock designed and manufactured in Australia
- Compatible with Lockwood 4800 and 5800 Series Furniture
- Operates on 9 – 28VDC with 300mA max current
- Multiple monitoring options including key override, deadlatch, door position, REX, and lock status
- Durable zinc alloy case with stainless steel chassis plates
- Reversible for left and right hand doors, opening in or out
- Stainless steel latch bolts with deadlatching auxiliary bolt
- Suitable for metal doors 35-50mm and timber doors 32-50mm thick
- Complies with Australian Lock Standard AS-4145.2-2008 for security, durability, and anti-corrosion
- Supplied with 3.6m cable and 12 pin connector with water deflecting boot
Professional Installation Requirements
- Professional installation by a qualified locksmith or security hardware specialist is recommended to ensure proper integration with door furniture and access control systems.
Applications
- Commercial narrow stile hinged doors
- Single-action escape doors
- Integration with electronic access control systems
- Use with push buttons, intercom systems, key switches, keypads, or card readers
Standards & Compliance
- Complies with AS-4145.2-2008 Australian Lock Standard for physical security, durability, and anti-corrosion
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- Energy-efficient operation with low current consumption
- Corrosion-resistant finish extends product lifespan
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Lockwood 6782 Electric Mortice Primary Lock is available for immediate purchase, ideal for commercial security applications requiring robust and reliable electric locking solutions.
